PSA39-21SURKWA

Active

Kingbright

.39" ALPHANUMERIC RED LED DISPLA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSA39-21SURKWA

Active

Kingbright

.39" ALPHANUMERIC RED LED DISPLA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSA39-21SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	9.91 mm
Digit/Alpha Size	0.39 in
Display Type	14-Segment, Alphanumeric
Millicandela Rating	36 mcd
Number of Characters [custom]	1
Package / Case	16-DIP
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	9.65 mm
Size / Dimension [x]	0.38 "
Size / Dimension [y]	9.91 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	0.82 in
Size / Dimension [z]	20.83 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

PSA39 Series

Part	Wavelength - Peak	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Common Pin	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Color	Package / Case [x]	Package / Case [y]
Kingbright PSA39-21SRWA	660 nm	14 mcd	20 mA	1.85 V	14-Segment Alphanumeric	9.65 mm	0.82 in	9.91 mm	0.38 "	20.83 mm	0.39 "	0.3 in	16-DIP	7.62 mm	1	Common Anode	75 mw	0.39 in	10 mm	Red
Kingbright PSA39-21YWA	590 nm	2.3 mcd	20 mA	2.1 V	14-Segment Alphanumeric	9.65 mm	0.82 in	9.91 mm	0.38 "	20.83 mm	0.39 "	0.3 in	16-DIP	7.62 mm	1	Common Anode	75 mw	0.39 in	10 mm	Yellow
Kingbright PSA39-21GWA	565 nm	4.4 mcd	20 mA	2.2 V	14-Segment Alphanumeric	9.65 mm	0.82 in	9.91 mm	0.38 "	20.83 mm	0.39 "	0.3 in	16-DIP	7.62 mm	1	Common Anode	62.5 mW	0.39 in	10 mm	Green
Kingbright PSA39-21SURKWA	645 nm	36 mcd	10 mA	1.85 V	14-Segment Alphanumeric	9.65 mm	0.82 in	9.91 mm	0.38 "	20.83 mm	0.39 "		16-DIP		1	Common Anode	75 mw	0.39 in	9.91 mm	Red	0.295 in	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.13
		10	$ 3.55
		100	$ 2.74
		500	$ 2.42
		1000	$ 2.32
		2000	$ 2.24

Description

General part information

PSA39 Series

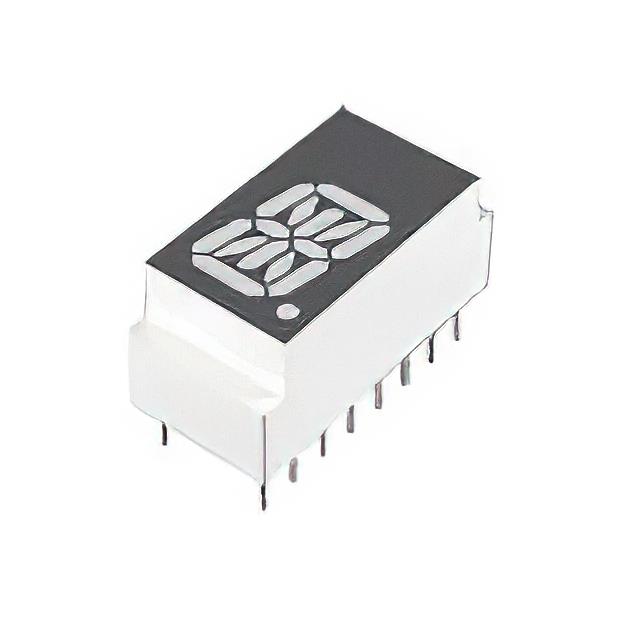

Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 1 Character Common Anode 1.85V 10mA 0.820" H x 0.390" W x 0.380" D (20.83mm x 9.91mm x 9.65mm) 16-DIP (0.295", 7.50mm)
