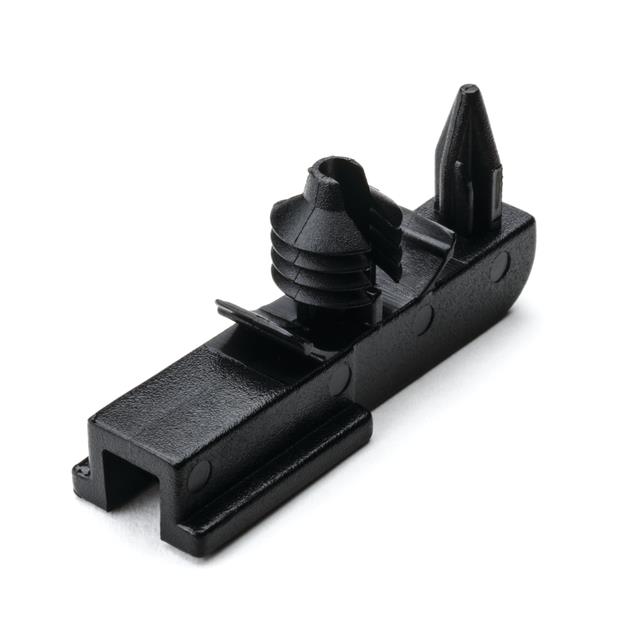

155-36002

Active

HELLERMANNTYTON

CONNECTOR CLIP HOLE DIA. 6.5-7.0MM PANEL 0.6-3.0MM/ PA66HIRHS BLACK 1000/PACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONNECTOR CLIP HOLE DIA. 6.5-7.0MM PANEL 0.6-3.0MM/ PA66HIRHS BLACK 1000/PACK

Technical Specifications

Parameters and characteristics for this part

Specification	155-36002

Color	Black
Features	Impact Resistant, Heat Stabilized
Height [z]	15.24 mm
Height [z]	0.6 in
Length [x]	1.32 "
Length [x]	33.53 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Fir Tree
Panel Hole Size [Max]	0.28 in
Panel Hole Size [Max]	7.11 mm
Panel Hole Size [Min]	6.6 mm
Panel Hole Size [Min]	0.26 in
Panel Thickness [Max]	3.05 mm
Panel Thickness [Max]	0.12 "
Panel Thickness [Min]	0.02 "
Panel Thickness [Min]	0.51 mm
Type	Connector, Clip
Type Attributes	Turnstop
Width [x]	10.16 mm
Width [x]	0.4 in

Part	Features	Material	Type Attributes	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Material Flammability Rating	Color	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Type	Width [x]	Width [x]	Mounting Type	Height [z]	Height [z]	Length [x]	Length [x]
HELLERMANNTYTON 155-36002	Heat Stabilized Impact Resistant	Polyamide (PA66) Nylon 6/6	Turnstop	3.05 mm	0.02 "	0.51 mm	0.12 "	UL94 HB	Black	6.6 mm	0.28 in	0.26 in	7.11 mm	Clip Connector	10.16 mm	0.4 in	Fir Tree	15.24 mm	0.6 in	1.32 "	33.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Connector Black Fir Tree
