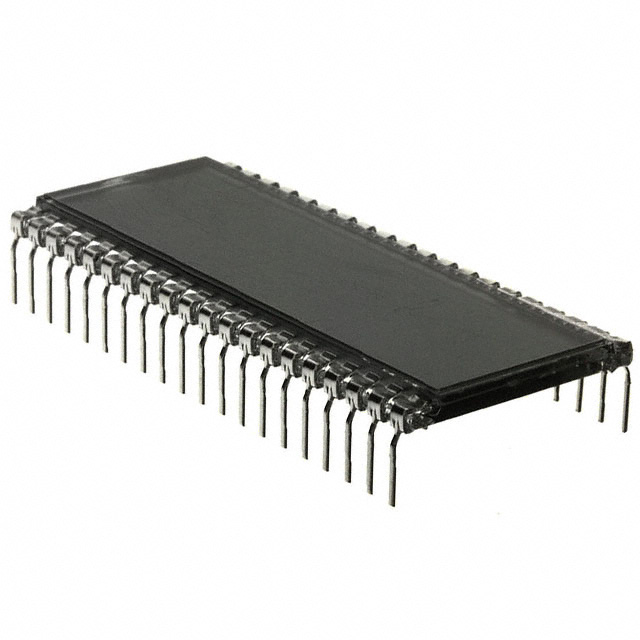

LCD-S4X1C35TR
ActiveLumex Opto/Components Inc.
LCD MOD 4.5DIG 4.5 X 1 REFLECTIV
Deep-Dive with AI
Search across all available documentation for this part.
LCD-S4X1C35TR
ActiveLumex Opto/Components Inc.
LCD MOD 4.5DIG 4.5 X 1 REFLECTIV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-S4X1C35TR |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [y] | 5.08 mm |
| Character Size [z] | 8.89 mm |
| Display Format [x] | 4.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 4.5 |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 23.5 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 46.8 mm |
| Viewing Area [y] | 14.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCD-S4 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 23.50mm x 2.80mm
Documents
Technical documentation and resources
No documents available
