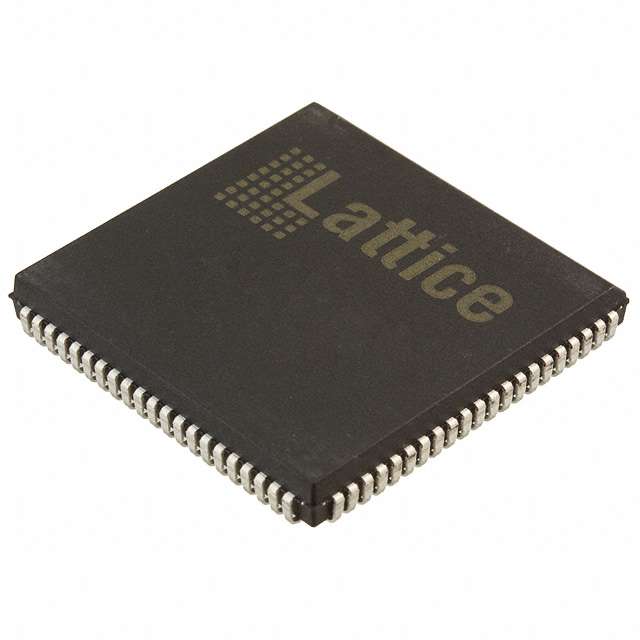

ISPLSI 1032E-125LJ

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 128MC 7.5NS 84PLCC

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 128MC 7.5NS 84PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	ISPLSI 1032E-125LJ

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of Gates [custom]	6000
Number of I/O	64
Number of Logic Elements/Blocks	32
Number of Macrocells	128
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	84-LCC (J-Lead)
Programmable Type	In System Programmable
Supplier Device Package	84-PLCC (29.31x29.31)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Number of Macrocells	Supplier Device Package	Mounting Type	Programmable Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Number of Gates [custom]	Delay Time tpd(1) Max [Max]	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Package / Case
LATTICE SEMICONDUCTOR ISPLSI 1032E-125LT	128	100-TQFP (14x14)	Surface Mount	In System Programmable	64	70 °C	0 °C	6000	7.5 ns	32	4.75 V	5.25 V	100-LQFP
LATTICE SEMICONDUCTOR ISPLSI 1032E-70LJI	128	84-PLCC (29.31x29.31)	Surface Mount	In System Programmable	64	85 °C	-40 °C	6000	15 ns	32	4.5 V	5.5 V	84-LCC (J-Lead)
LATTICE SEMICONDUCTOR ISPLSI 1032E-125LTN	128	100-TQFP (14x14)	Surface Mount	In System Programmable	64	70 °C	0 °C	6000	7.5 ns	32	4.75 V	5.25 V	100-LQFP
LATTICE SEMICONDUCTOR ISPLSI 1032E-70LTNI	128	100-TQFP (14x14)	Surface Mount	In System Programmable	64	85 °C	-40 °C	6000	15 ns	32	4.5 V	5.5 V	100-LQFP
LATTICE SEMICONDUCTOR ISPLSI 1032E-125LJ	128	84-PLCC (29.31x29.31)	Surface Mount	In System Programmable	64	70 °C	0 °C	6000	7.5 ns	32	4.75 V	5.25 V	84-LCC (J-Lead)
LATTICE SEMICONDUCTOR ISPLSI 1032E-100LJ	128	84-PLCC (29.31x29.31)	Surface Mount	In System Programmable	64	70 °C	0 °C	6000	10 ns	32	4.75 V	5.25 V	84-LCC (J-Lead)
LATTICE SEMICONDUCTOR ISPLSI 1032E-100LTN	128	100-TQFP (14x14)	Surface Mount	In System Programmable	64	70 °C	0 °C	6000	10 ns	32	4.75 V	5.25 V	100-LQFP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 128MC 7.5NS 84PLCC
