318-60158

Active

HELLERMANNTYTON

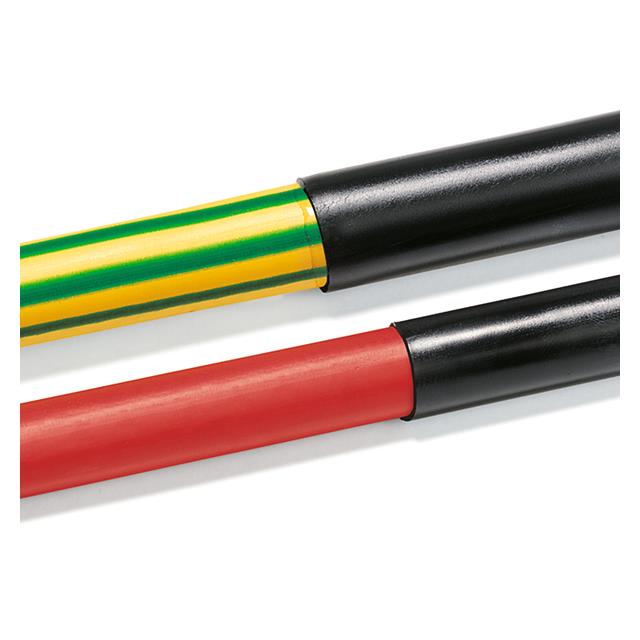

ADHESIVE LINED HEAT SHRINK TUBING, PACK OF 6 4' STICKS, 3:1, 1.58 ", 40 MM, BLACK, 4 FT, 1.2 M

Search across all available documentation for this part.

Active

HELLERMANNTYTON

ADHESIVE LINED HEAT SHRINK TUBING, PACK OF 6 4' STICKS, 3:1, 1.58 ", 40 MM, BLACK, 4 FT, 1.2 M

Technical Specifications

Parameters and characteristics for this part

Specification	318-60158

Color	Black
Features	Moisture Resistant, Flame Retardant, Oil Resistant, Solvent Resistant, Fuel Resistant, Adhesive Lined
Inner Diameter - Recovered	13 mm
Inner Diameter - Recovered	0.512 in
Inner Diameter - Supplied [diameter]	1.575 "
Inner Diameter - Supplied [diameter]	40.01 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.094 "
Recovered Wall Thickness	2.4 mm
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Length [x]	Length [x]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
HELLERMANNTYTON 318-60150	-55 °C	125 °C	110 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated	0.039 in	0.99 mm	0.99 mm	0.039 in	3 mm	0.118 in	Tubing Flexible	Adhesive Lined Flame Retardant Fuel Resistant Moisture Resistant Oil Resistant Solvent Resistant	1	3	Black
HELLERMANNTYTON 318-60153	-55 °C	125 °C	110 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated	0.118 in	2.99 mm	1.4 mm	0.055 in	8.99 mm	0.354 in	Tubing Flexible	Adhesive Lined Flame Retardant Fuel Resistant Moisture Resistant Oil Resistant Solvent Resistant	1	3	Black
HELLERMANNTYTON 318-60156	-55 °C	125 °C	110 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated	0.315 in	8 mm	2.4 mm	0.094 "	24 mm	0.945 "	Tubing Flexible	Adhesive Lined Flame Retardant Fuel Resistant Moisture Resistant Oil Resistant Solvent Resistant	1	3	Black
HELLERMANNTYTON 318-60158	-55 °C	125 °C	110 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated			2.4 mm	0.094 "	1.575 "		Tubing Flexible	Adhesive Lined Flame Retardant Fuel Resistant Moisture Resistant Oil Resistant Solvent Resistant	1	3	Black	40.01 mm	13 mm	0.512 in
