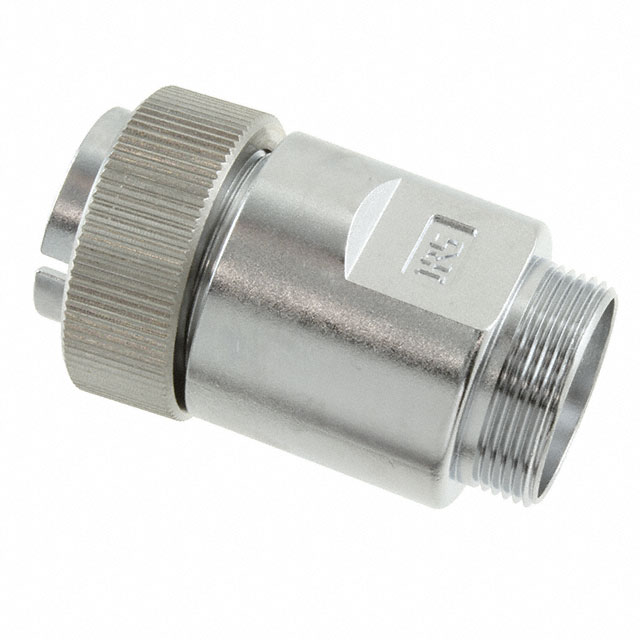

RM15WTPZ-8P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 8P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15WTPZ-8P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 8P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15WTPZ-8P(71)

Backshell Material, Plating	Chrome, Zinc Alloy
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	15
Voltage Rating	700 VDC, 500 VAC

RM15WTPZ Series

Part	Shielding	Orientation	Color	Current Rating (Amps)	Voltage Rating	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Primary Material	Mounting Type	Shell Material	Number of Positions	Shell Size - Insert	Connector Type	Shell Finish	Backshell Material, Plating	Contact Material	Insert Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature
Hirose Electric USA, Inc. RM15WTPZ-12P(77)	Unshielded	Keyed	Silver	5 A	350 VAC 490 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Brass Zinc Alloy	12	15	Male Pins Plug
Hirose Electric USA, Inc. RM15WTPZ-2P(81)	Unshielded	Keyed	Silver	10 A	600 VAC 840 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	2	15	Male Pins Plug	Chrome	Chrome Zinc Alloy	Phosphor Bronze	Diallyl Phthalate (DAP)	Silver
Hirose Electric USA, Inc. RM15WTPZ-10S(72)		Keyed	Silver	5 A	350 VAC 490 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	10	15	Female Sockets Plug	Chrome	Chrome Zinc Alloy	Copper Alloy	Diallyl Phthalate (DAP)	Gold	0.203 Ám	8 Áin
Hirose Electric USA, Inc. RM15WTPZ-4S(81)	Unshielded	Keyed	Silver	10 A	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof		-25 °C	85 °C	UL94 V-0	Metal		Brass Zinc Alloy	4	15	Receptacle Female Sockets	Chromate		Copper Alloy	Polyphenylene Sulfide (PPS)	Silver	2 µm	78.7 µin	Bulkhead - Front Side Nut
Hirose Electric USA, Inc. RM15WTPZ-8P(76)	Unshielded	Keyed	Silver	5 A	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Brass Zinc Alloy	8	15	Male Pins Plug
Hirose Electric USA, Inc. RM15WTPZ-10P(71)		Keyed	Silver	5 A	350 VAC 490 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	10	15	Male Pins Plug	Chromate		Copper Alloy	Diallyl Phthalate (DAP)	Silver	2 µm	78.7 µin
Hirose Electric USA, Inc. RM15WTPZ-3S(72)		Keyed	Silver	10 A	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy		15	Female Sockets Plug	Chromate		Phosphor Bronze	Diallyl Phthalate (DAP)	Gold	0.203 Ám	8 Áin
Hirose Electric USA, Inc. RM15WTPZ-2S(72)		Keyed	Silver	10 A	600 VAC 840 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	2	15	Female Sockets Plug	Chrome	Chrome Zinc Alloy	Copper Alloy	Diallyl Phthalate (DAP)	Gold	0.203 Ám	8 Áin
Hirose Electric USA, Inc. RM15WTPZ-8S(71)		Keyed	Silver	5 A	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	8	15	Female Sockets Plug	Chrome	Chrome Zinc Alloy	Copper Alloy	Diallyl Phthalate (DAP)	Silver	5 µm	196.9 µin
Hirose Electric USA, Inc. RM15WTPZ-8P(71)		Keyed	Silver	5 A	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut	-25 °C	85 °C	UL94 V-0	Metal	Free Hanging (In-Line)	Zinc Alloy	8	15	Male Pins Plug	Chrome	Chrome Zinc Alloy	Copper Alloy	Diallyl Phthalate (DAP)	Silver	2 µm	78.7 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM15WTPZ Series

8 Position Circular Connector Plug, Male Pins Solder Cup
