4184N/2X

Active

ebm-papst Inc.

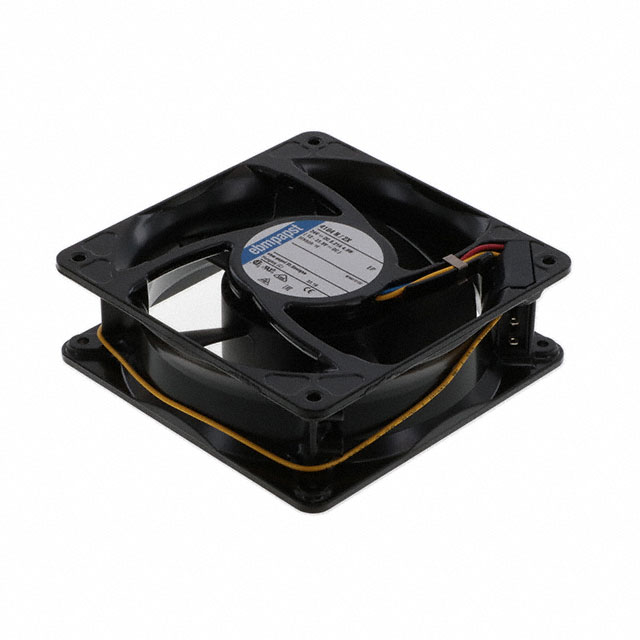

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

Documents4184 N/2X Operating Manual Datasheet

4184N/2X

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Documents4184 N/2X Operating Manual Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4184N/2X

Air Flow	106 CFM
Air Flow	2.97 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	85000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	49 dB
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	4.9 W
RPM	3200 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	31.5 VDC
Voltage Range [Min]	12 VDC
Weight	0.86 lb
Weight	390.09 g
Width [y]	38 mm

4184N Series

Part	Noise	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Termination	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Bearing Type	Air Flow	Air Flow	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Width [y]	RPM	Power (Watts)	Fan Type	Weight	Weight	Material - Frame	Features	Current Rating (Amps)	Lifetime @ Temp.
ebm-papst Inc. 4184NXHH	60 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	28 VDC	2 Terminals	70000 Hrs	24 VDC	119 mm	119 mm	CE CSA UL VDE	Ball	147.1 CFM	4.12 m³/min	-30 °C	-22 °F	70 °C	158 °F	38 mm	4400 RPM	12.2 W	Tubeaxial	0.86 lb	390.09 g	Aluminum
ebm-papst Inc. 4184N/2X-268	49 dB	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	31.5 VDC			24 VDC	119 mm	119 mm		Ball	106 CFM	2.97 mł/min					38 mm	3200 RPM	4.9 W	Tubeaxial	0.86 lb	390.09 g	Aluminum	Speed Sensor (Tach)
ebm-papst Inc. 4184N/2XR	49 dB	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	31.5 VDC	3 Wire Leads		24 VDC	119 mm	119 mm		Ball	106 CFM	2.97 mł/min	-30 °C	-22 °F	70 °C	158 °F	38 mm	3200 RPM	4.9 W	Tubeaxial	0.86 lb	390.09 g	Aluminum	Speed Sensor (Tach)
ebm-papst Inc. 4184N/2X	49 dB	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	31.5 VDC	3 Wire Leads	85000 Hrs	24 VDC	119 mm	119 mm		Ball	106 CFM	2.97 mł/min	-30 °C	-22 °F	70 °C	158 °F	38 mm	3200 RPM	4.9 W	Tubeaxial	0.86 lb	390.09 g	Aluminum	Speed Sensor (Tach)
ebm-papst Inc. 4184N/17X	49 dB	Fiberglass Reinforced Nylon Polyamide (PA)	18 VDC	32 VDC	3 Wire Leads		24 VDC	119 mm	119 mm	CE CSA EAC UL VDE	Ball	106 CFM	2.97 mł/min	-30 °C	-22 °F	70 °C	158 °F	38 mm	3200 RPM	4.9 W	Tubeaxial			Aluminum		0.245 A	Varies Based on Temperature
ebm-papst Inc. 4184NXHU	57 dB	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	28 VDC	2 Wire Leads		24 VDC	119 mm	119 mm		Ball	140 CFM	3.92 mł/min					38 mm	4400 RPM	11 W	Tubeaxial	0.86 lb	390.09 g	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.06
		10	$ 64.25
		25	$ 61.38
		50	$ 59.29
		100	$ 57.27

Description

General part information

4184N Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 106.0 CFM (2.97m³/min) 3 Wire Leads

Documents

Technical documentation and resources

4184 N/2X Operating Manual

Datasheet
