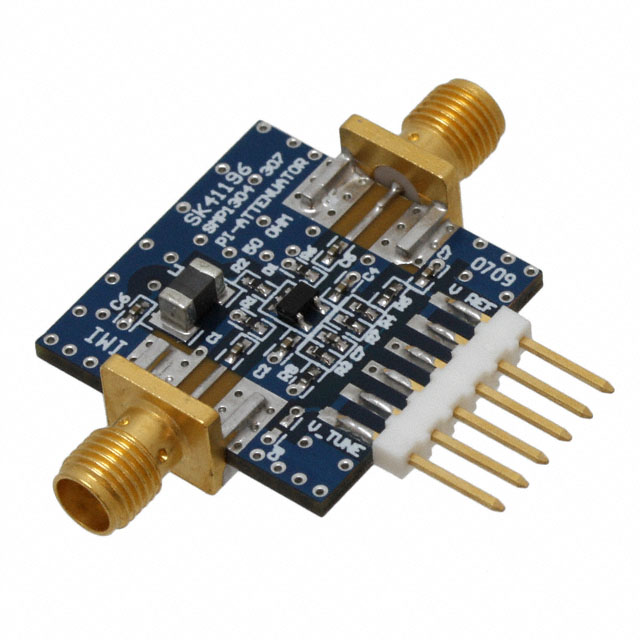

SMP1307-027LF-EVB (50 OHM)

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SMP1307

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SMP1307

Technical Specifications

Parameters and characteristics for this part

Specification	SMP1307-027LF-EVB (50 OHM)

For Use With/Related Products	SMP1307-027LF
Supplied Contents	Board(s)
Type	PIN Diode

Part	Supplier Device Package	Resistance @ If, F	Diode Type	Capacitance @ Vr, F	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Power Dissipation (Max) [Max]	Supplied Contents	Type	For Use With/Related Products
Skyworks Solutions Inc. SMP1307-099	Chip	15 Ohm	PIN - Single	0.2 pF	Die	-65 °C	150 °C	200 V
Skyworks Solutions Inc. SMP1307-011LF	SOD-323	3 Ohm	PIN - Single	0.3 pF	SC-76 SOD-323	-65 °C	150 °C	200 V	250 mW
Skyworks Solutions Inc. SMP1307-027LF-EVB (50 OHM)										Board(s)	PIN Diode	SMP1307-027LF
Skyworks Solutions Inc. SMP1307-003LF	SOT-23-3	3 Ohm	PIN - 1 Pair Common Anode	0.3 pF	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	200 V	250 mW
Skyworks Solutions Inc. SMP1307-004LF	SOT-23-3	3 Ohm	PIN - 1 Pair Common Cathode	0.3 pF	SC-59 SOT-23-3 TO-236-3	-65 °C	150 °C	200 V	250 mW
Skyworks Solutions Inc. SMP1307-027LF	SOT-5	3 Ohm	PIN - 2 Pair CA + CC	0.3 pF	SOT-5	-65 °C	150 °C	200 V	250 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- SMP1307-027LF PIN Diode Evaluation Board

Technical documentation and resources
