0346900202

Active

Molex

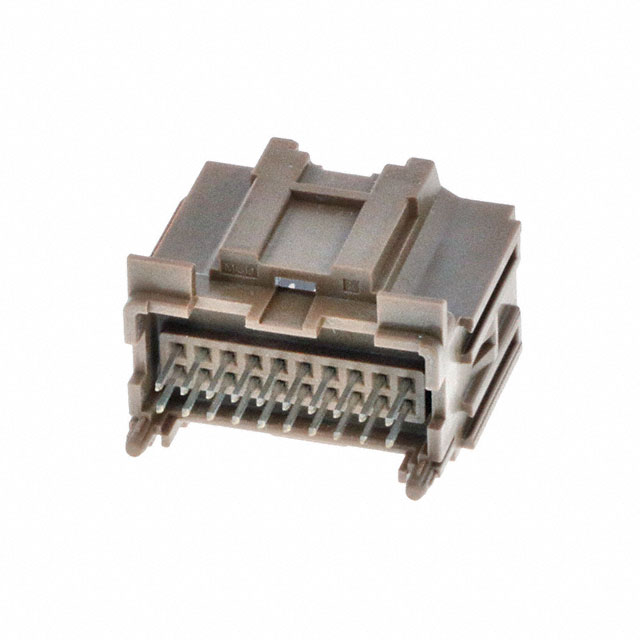

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0346900202

Active

Molex

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0346900202

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Cartridge Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Brown
Insulation Height	22.5 mm
Insulation Height	0.886 in
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034690 Series

Part	Termination	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Material	Features	Number of Rows	Contact Type	Number of Positions Loaded	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Applications	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Style	Shrouding	Fastening Type	Connector Type	Number of Positions
Molex 0346900081	Solder	0.117 in	2.97 mm	8	Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Gray	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header
Molex 0346900200	Solder	0.117 in	2.97 mm	20	Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header
Molex 0346900162	Solder	0.117 in	2.97 mm		Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Brown	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header	16
Molex 0346900161	Solder	0.117 in	2.97 mm		Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Gray	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header	16
Molex 0346900202	Solder	0.117 in	2.97 mm	20	Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Brown	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header
Molex 0346900122	Solder	0.117 in	2.97 mm	12	Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Brown	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header
Molex 0346900203	Solder	0.117 in	2.97 mm	20	Cartridge Brass	Board Guide	2	Male Pin	All	Through Hole	2.54 mm	0.1 in	Tin	Automotive	0.1 in	2.54 mm	-40 °C	105 ░C	22.5 mm	0.886 in	Green	Square	Board to Cable/Wire	Shrouded - 4 Wall	Latch Holder	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.12
		10	$ 1.87
		80	$ 1.50

Description

General part information

034690 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
