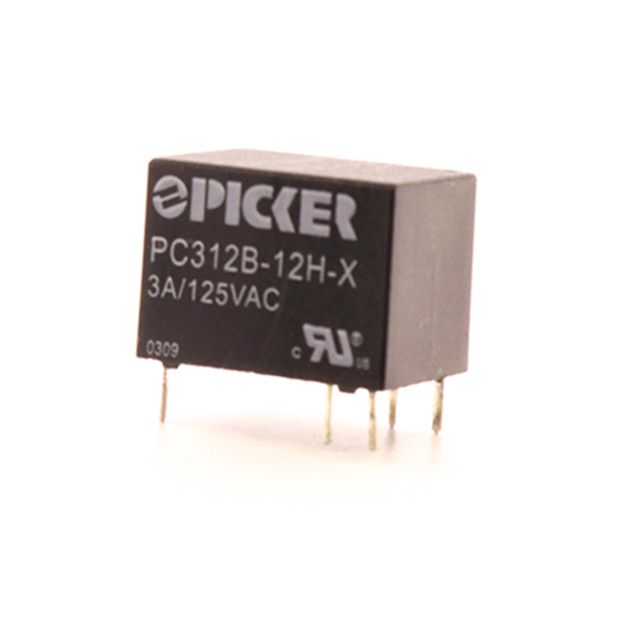

PC312B-12H-X
ActivePicker Components
RELAY TELECOM SPDT 3A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC312B-12H-X
ActivePicker Components
RELAY TELECOM SPDT 3A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC312B-12H-X |
|---|---|
| Coil Current | 16.7 mA |
| Coil Insulation | Class B |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 144 W, 900 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | Telecom |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 300 VAC, 48 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 0.62 | |
Description
General part information
PC312B-12 Series
Telecom Relay SPDT (1 Form C) 12VDC Coil Through Hole
