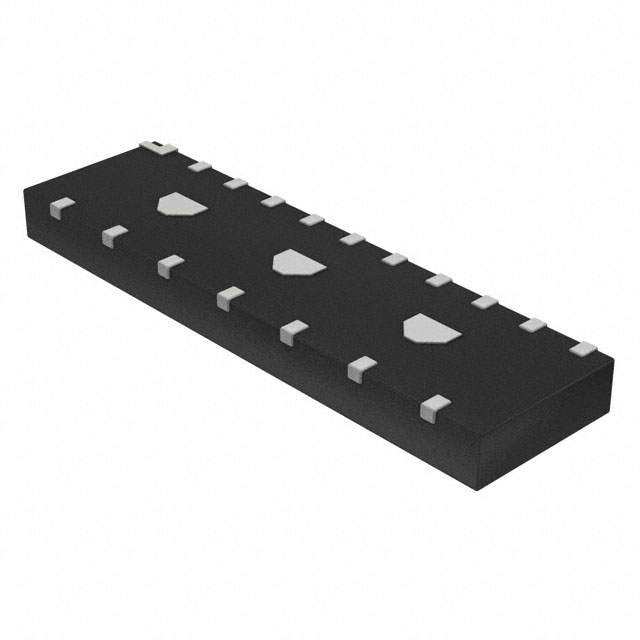

SZMG2040MUTAG

Active

ON Semiconductor

ESD PROTECTION DIODE, LOW CAPACITANCE, HIGH SPEED VIDEO INTERFACE/ REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-517CP-UDFN18, 5.5x1.5, 0.5P/0.75P +1

SZMG2040MUTAG

Active

ON Semiconductor

ESD PROTECTION DIODE, LOW CAPACITANCE, HIGH SPEED VIDEO INTERFACE/ REEL

Deep-Dive with AI

DocumentsDatasheet Package Drawing-517CP-UDFN18, 5.5x1.5, 0.5P/0.75P +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZMG2040MUTAG

Applications	HDMI
Capacitance @ Frequency	0.35 pF
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	18-UFDFN Exposed Pad
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	18-UDFN
Supplier Device Package [x]	5.5
Supplier Device Package [y]	1.5
Type	Zener
Unidirectional Channels	14
Voltage - Breakdown (Min) [Min]	5.5 V
Voltage - Clamping (Max) @ Ipp [Max]	10 V
Voltage - Reverse Standoff (Typ)	5 V

SZMG2040 Series

ESD Protection Diode, Low Capacitance, High Speed Video Interface

Part	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Reverse Standoff (Typ)	Package / Case	Type	Grade	Capacitance @ Frequency	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Qualification	Applications	Mounting Type	Unidirectional Channels
ON Semiconductor SZMG2040MUTAG	18-UDFN	5.5	1.5	5 V	18-UFDFN Exposed Pad	Zener	Automotive	0.35 pF		10 V	125 ¯C	-55 °C	5.5 V	AEC-Q101	HDMI	Surface Mount	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.90
		10	$ 0.78
		100	$ 0.54
		500	$ 0.45
		1000	$ 0.38
	Digi-Reel®	1	$ 0.90
		10	$ 0.78
		100	$ 0.54
		500	$ 0.45
		1000	$ 0.38
	Tape & Reel (TR)	3000	$ 0.34
		6000	$ 0.32
		9000	$ 0.30
		30000	$ 0.30
Newark	Each (Supplied on Full Reel)	3000	$ 0.40
		6000	$ 0.37
		12000	$ 0.34
		18000	$ 0.32
		30000	$ 0.31
ON Semiconductor	N/A	1	$ 0.32

Description

General part information

SZMG2040 Series

The MG2040 is designed specifically to protect HDMI and Display Port with full functionality ESD protection and back drive current protection for VCCline. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed TMDS lines.
