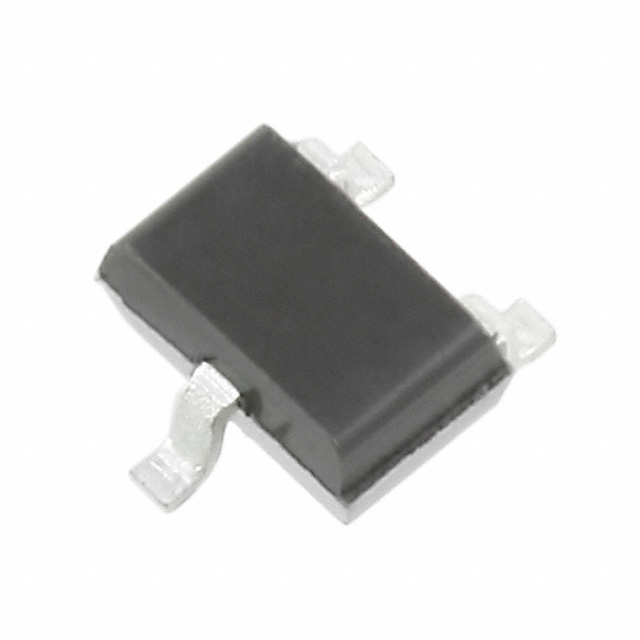

SMV1263-074LF

Active

Skyworks Solutions Inc.

2.5@C0.5V/C2.5V 20V 1 PAIR OF COMMON CATHODES 2.9PF@2.5V,1MHZ SC-70-3 DIODES - VARIABLE CAPACITANCE ROHS

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

2.5@C0.5V/C2.5V 20V 1 PAIR OF COMMON CATHODES 2.9PF@2.5V,1MHZ SC-70-3 DIODES - VARIABLE CAPACITANCE ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SMV1263-074LF

Capacitance @ Vr, F	2.9 pF
Capacitance Ratio	2.5
Capacitance Ratio Condition	C0.5/C2.5
Diode Type	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70-3
Voltage - Peak Reverse (Max)	20 V

Part	Capacitance @ Vr, F	Package / Case	Capacitance Ratio Condition	Voltage - Peak Reverse (Max)	Supplier Device Package	Capacitance Ratio	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type
Skyworks Solutions Inc. SMV1263-079LF	2.9 pF	SC-79 SOD-523	C0.5/C2.5	20 V	SC-79	2.5	Surface Mount	125 ¯C	-55 °C	Single
Skyworks Solutions Inc. SMV1263-074LF	2.9 pF	SC-70 SOT-323	C0.5/C2.5	20 V	SC-70-3	2.5	Surface Mount	125 ¯C	-55 °C	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Varactors 1 Pair Common Cathode 20 V Surface Mount SC-70-3
