FSSH0066F

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FSSH0066F

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord, Steel Armor
Features	6 Fibers
Jacket (Insulation) Diameter [diameter]	13.46 mm
Jacket (Insulation) Diameter [diameter]	0.53 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Singlemode

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cladding Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Features	Features	Core Diameter [diameter]	Style	Tensile Strength	Jacket Color	Type
Belden Inc. FSSH006NF
Belden Inc. FSSH0066F	13.46 mm	0.53 in	125 µm	-40 °C	70 °C	Poly-Vinyl Chloride (PVC)	Rip Cord Steel Armor	6 Fibers	9 µm	Multiple Fibers	81.6 kg	Black	Singlemode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 1.09

General part information

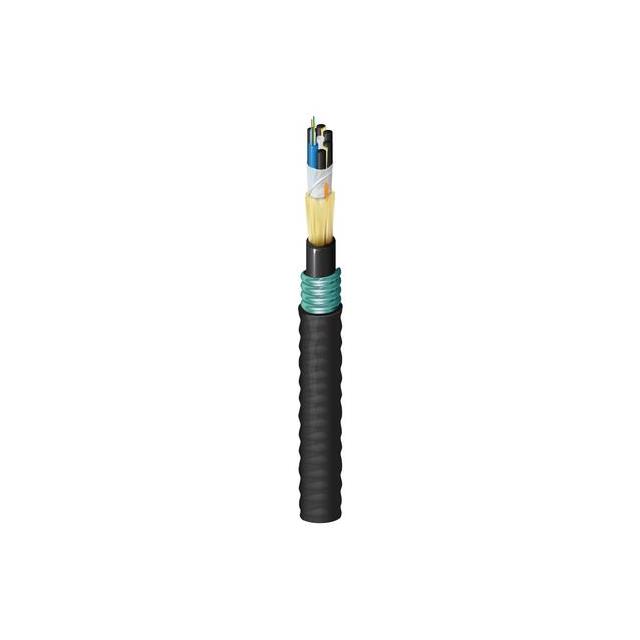

Fiber Optic Cable Black Singlemode 125µm
