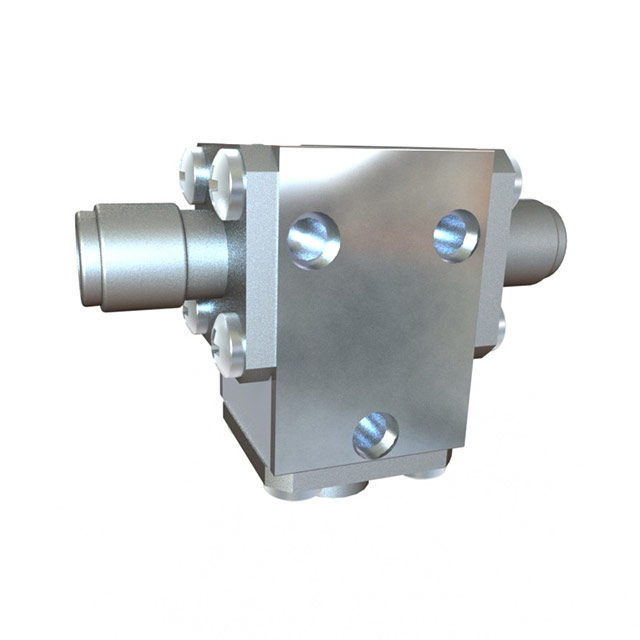

D3I1020-3
ActiveDiTom Microwave
10.00 - 20.00 GHZ ISOLATOR
Deep-Dive with AI
Search across all available documentation for this part.
D3I1020-3
ActiveDiTom Microwave
10.00 - 20.00 GHZ ISOLATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D3I1020-3 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 10 GHz |
| Insertion Loss | 0.7 dB |
| Isolation | 16 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 10 W |
| Type | Isolator |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 500.00 | |
Description
General part information
D3I1020 Series
10.00 - 20.00 GHZ ISOLATOR
Documents
Technical documentation and resources
