430544-504
ActiveLaird Thermal Systems, Inc.
ET20,24,F2A,0709,11,22,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430544-504
ActiveLaird Thermal Systems, Inc.
ET20,24,F2A,0709,11,22,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430544-504 |
|---|---|
| Current - Max [Max] | 2 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.29 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 3.3 W |
| Resistance | 1.25 Ohms |
| Size / Dimension [x] | 10.8 mm |
| Size / Dimension [y] | 6.6 mm |
| Voltage - Max [Max] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.89 | |
| 5 | $ 57.37 | |||
| 10 | $ 55.61 | |||
| 25 | $ 53.85 | |||
Description
General part information
430544 Series

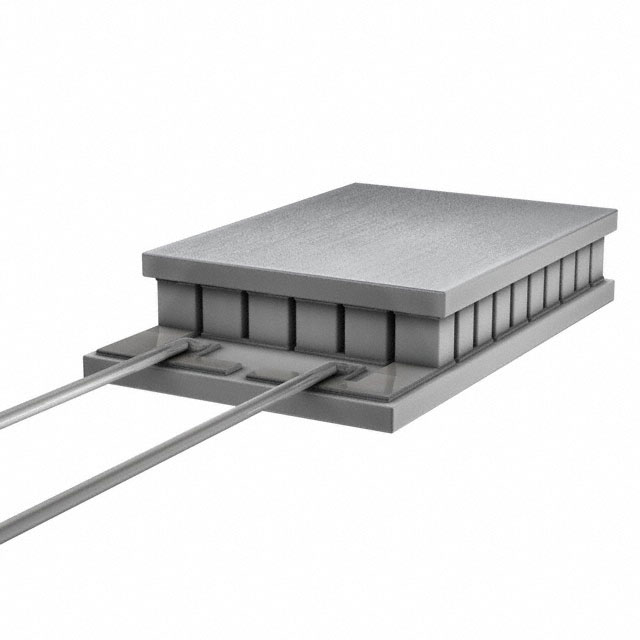

Peltier Module 3.3W @ 25°C 2 A 80°C
