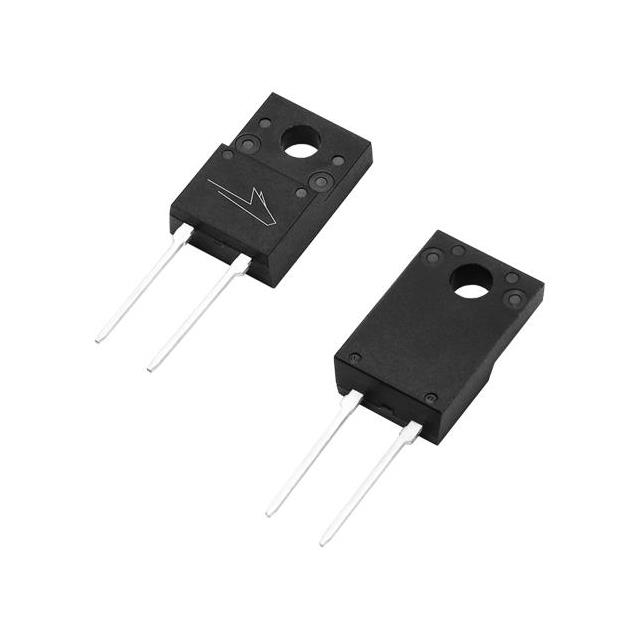

C3D02060F

Active

Wolfspeed

DIODE SIL CARB 600V 6A TO220-F2

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SIL CARB 600V 6A TO220-F2

Technical Specifications

Parameters and characteristics for this part

Specification	C3D02060F

Capacitance @ Vr, F	120 pF
Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220-F2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.7 V

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Package / Case	Speed	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type
Wolfspeed C3D02060E	1.7 V	175 ░C	-55 C	TO-252-2	0 ns	120 pF	DPAK (2 Leads + Tab) SC-63 TO-252-3	No Recovery Time	SiC (Silicon Carbide) Schottky	600 V	50 µA	8 A	Surface Mount
Wolfspeed C3D02060E-TR	1.7 V	175 ░C	-55 C	TO-252-2		11 pF	DPAK (2 Leads + Tab) SC-63 TO-252-3	No Recovery Time	SiC (Silicon Carbide) Schottky	600 V	50 µA	8 A	Surface Mount
Wolfspeed C3D02060A	1.7 V	175 ░C	-55 C	TO-220-2	0 ns	120 pF	TO-220-2	No Recovery Time	SiC (Silicon Carbide) Schottky	600 V	50 µA	8 A	Through Hole
Wolfspeed C3D02060F	1.7 V	175 ░C	-55 C	TO-220-F2	0 ns	120 pF	TO-220-2 Full Pack Isolated Tab	No Recovery Time	SiC (Silicon Carbide) Schottky	600 V	50 µA	6 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 6A Through Hole TO-220-F2
