2T13K33MDBVREP

Active

Texas Instruments

IC SUPERVISOR 1 CHANNEL SOT23-6

Search across all available documentation for this part.

Active

Texas Instruments

IC SUPERVISOR 1 CHANNEL SOT23-6

Technical Specifications

Parameters and characteristics for this part

Specification	2T13K33MDBVREP

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output	Open Drain or Open Collector

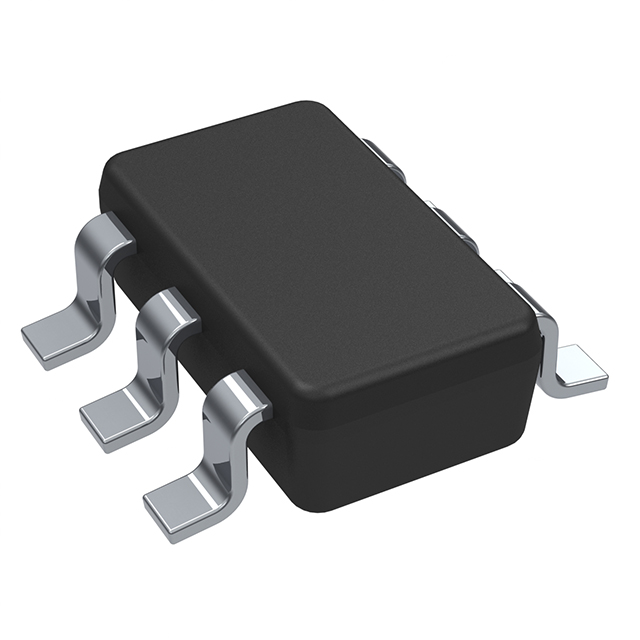

Package / Case	SOT-23-6
Reset	Active High/Active Low
Reset Timeout	20 ms
Supplier Device Package	SOT-23-6
Type	Watchdog Circuit
Voltage - Threshold	2.93 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Reset Timeout	Reset	Type	Output	Supplier Device Package	Voltage - Threshold	Number of Voltages Monitored	Mounting Type
Texas Instruments 2T13K33MDBVREPG4	125 °C	-55 °C	SOT-23-6	20 ms	Active Low	Simple Reset/Power-On Reset	Open Drain or Open Collector	SOT-23-6	2.93 V	1	Surface Mount
Texas Instruments 2T13K33MDBVREP	125 °C	-55 °C	SOT-23-6	20 ms	Active High/Active Low	Watchdog Circuit	Open Drain or Open Collector	SOT-23-6	2.93 V	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Supervisor Open Drain or Open Collector 1 Channel SOT-23-6
