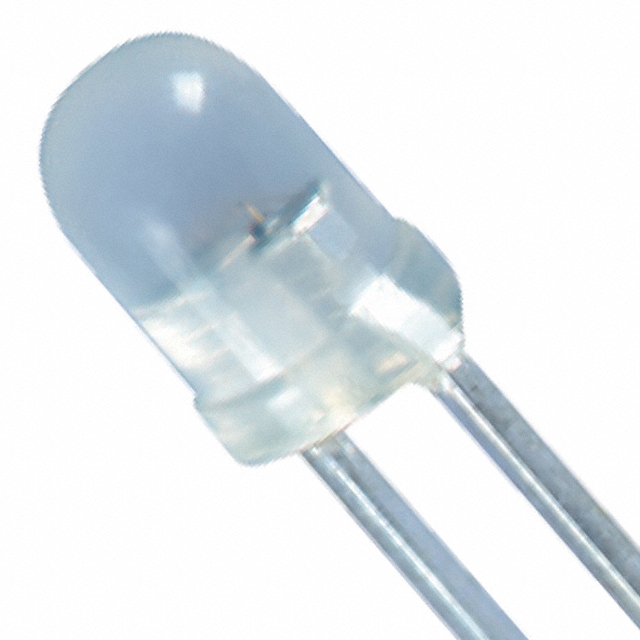

XLUGR37M
ActiveSunLED
LED GREEN/RED DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLUGR37M
ActiveSunLED
LED GREEN/RED DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLUGR37M |
|---|---|
| Color | Red, Green |
| Configuration | Bidirectional |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 4.6 mm |
| Lens Color | White |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 13 mcd |
| Millicandela Rating [custom] | 9 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Dominant | 568 nm, 617 nm |
| Wavelength - Peak | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.34 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| 5000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
Description
General part information
XLUGR37 Series
Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial
