51-259.025
ActiveEAO

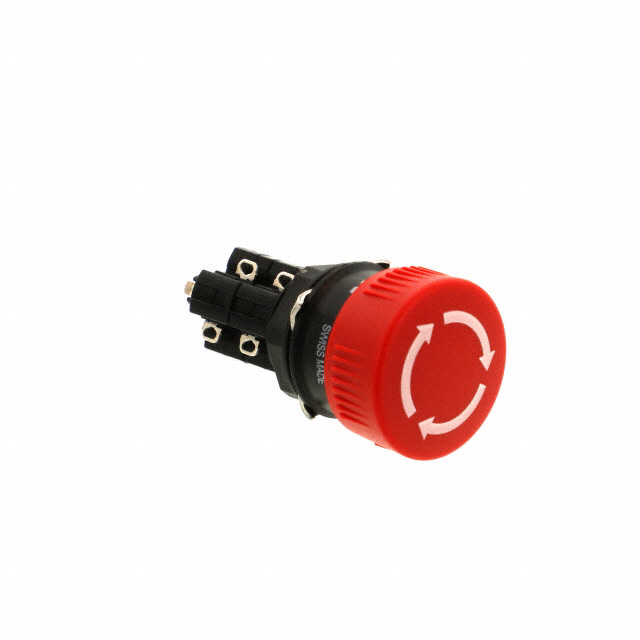

SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-259.025
ActiveEAO
SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-259.025 |
|---|---|
| Circuit | 4PST-2NO/2NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.76 | |
| 5 | $ 42.57 | |||
| 10 | $ 40.15 | |||
| 25 | $ 37.15 | |||
| 50 | $ 35.03 | |||
| 100 | $ 33.02 | |||
Description
General part information
51-259 Series
SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT
