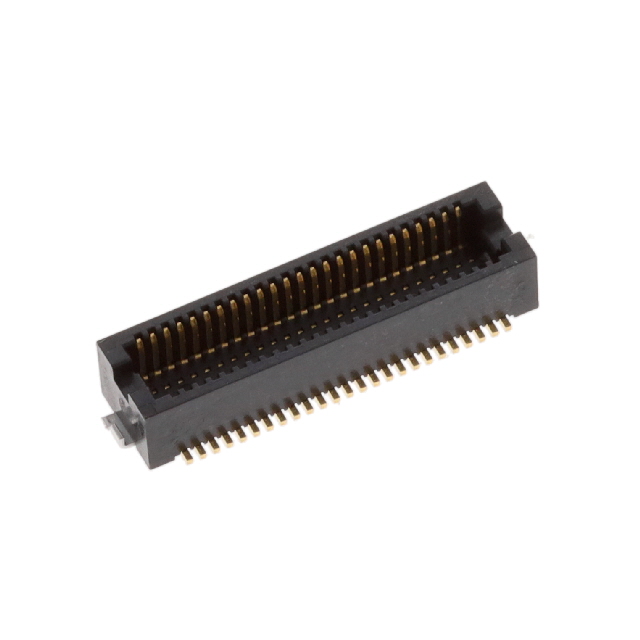

DF12NB(3.5)-50DP-0.5V(51)
ActiveHirose Electric USA, Inc.
0.5MM PITCH SMT BOARD-TO-BOARD CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF12NB(3.5)-50DP-0.5V(51)
ActiveHirose Electric USA, Inc.
0.5MM PITCH SMT BOARD-TO-BOARD CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12NB(3.5)-50DP-0.5V(51) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Solder Retention |
| Height Above Board [z] | 0.11 " |
| Height Above Board [z] | 2.8 mm |
| Mated Stacking Heights | 3.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
