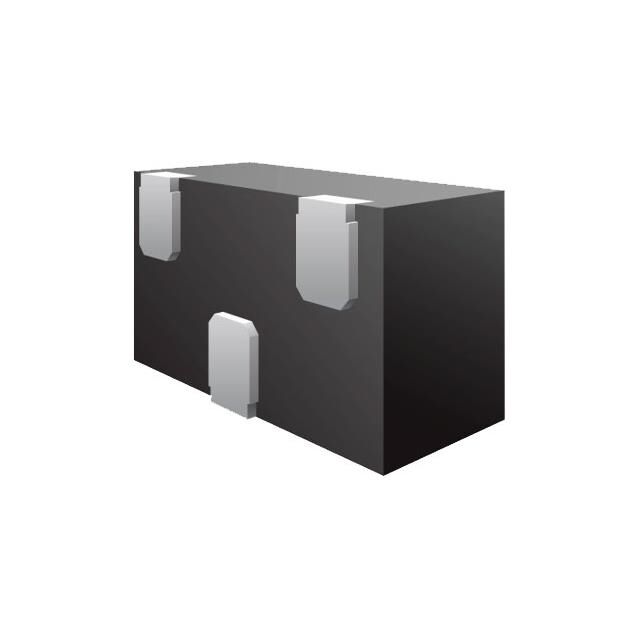

RCLAMP0512TQTCT
ActiveSemtech Corporation
2-LINE 5V 3PF 0.075R ESD SGF1006N3T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCLAMP0512TQTCT
ActiveSemtech Corporation
2-LINE 5V 3PF 0.075R ESD SGF1006N3T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCLAMP0512TQTCT |
|---|---|
| Applications | Ethernet |
| Capacitance @ Frequency | 2 pF |
| Current - Peak Pulse (10/1000µs) | 20 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | 170 W |
| Power Line Protection | True |
| Qualification | AEC-Q100 |
| Supplier Device Package | SGP1006N3T |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 8.5 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 10 | $ 0.71 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.71 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 3000 | $ 0.36 | ||
| 6000 | $ 0.34 | |||
| 9000 | $ 0.33 | |||
| 30000 | $ 0.33 | |||
| Newark | Each (Supplied on Full Reel) | 3000 | $ 0.43 | |
| 6000 | $ 0.39 | |||
| 12000 | $ 0.35 | |||
| 18000 | $ 0.34 | |||
| 30000 | $ 0.33 | |||
Description
General part information
RCLAMP0512 Series
8.5V Clamp 20A (1.2/50µs) Ipp Tvs Diode Surface Mount SGP1006N3T
