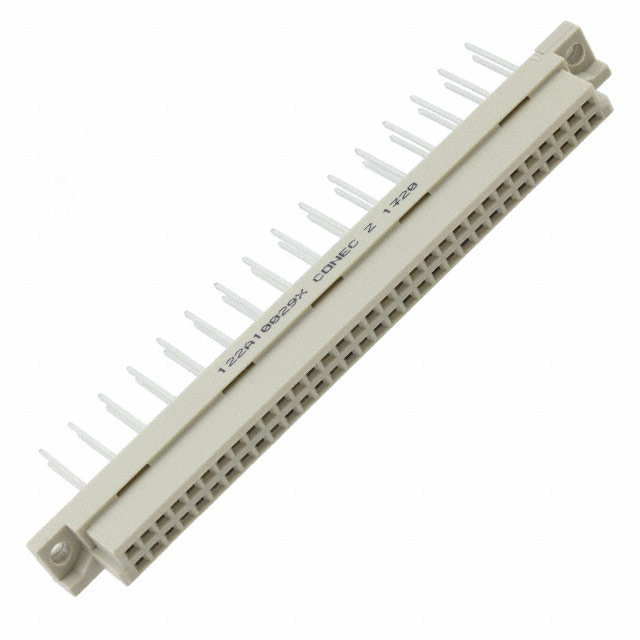

122A10029X

Active

Amphenol CONEC

CONN DIN RCPT 64POS PCB GOLD

Deep-Dive with AI

Search across all available documentation for this part.

122A10029X

Active

Amphenol CONEC

CONN DIN RCPT 64POS PCB GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122A10029X

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	2 A
Level, Class	3
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B
Termination	Wire Wrap

122A100 Series

Part	Connector Type	Material Flammability Rating	Style	Number of Positions Loaded	Termination	Number of Positions	Mounting Type	Material - Insulation	Pitch [x]	Pitch [x]	Number of Rows	Current Rating (Amps)	Level, Class	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol CONEC 122A10029X	Receptacle Female Sockets	UL94 V-0	B	32	Wire Wrap	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10069X	Receptacle Female Sockets	UL94 V-0	B	64	Solder	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10059X	Receptacle Female Sockets	UL94 V-0	B	32	Solder	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10019X	Receptacle Female Sockets	UL94 V-0	B	32	Wire Wrap	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10099X	Receptacle Female Sockets	UL94 V-0	B	64	Solder	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10079X	Receptacle Female Sockets	UL94 V-0	B	32	Solder	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10089X	Receptacle Female Sockets	UL94 V-0	B	32	Solder	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C
Amphenol CONEC 122A10039X	Receptacle Female Sockets	UL94 V-0	B	64	Wire Wrap	64	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	2 A	3	Gold	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.23
		10	$ 5.63
		25	$ 5.32
		50	$ 5.19
		100	$ 4.93
		250	$ 4.41
		500	$ 4.15
		1000	$ 3.63
		2500	$ 3.45

Description

General part information

122A100 Series

64 Position Din Connector Receptacle, Female Sockets Gold Through Hole

Documents

Technical documentation and resources

No documents available
