302-S641

Active

On Shore Technology Inc.

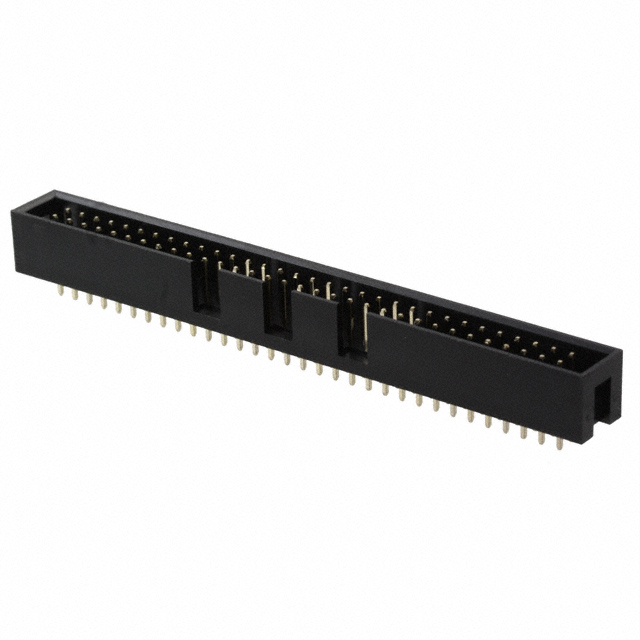

CONN HEADER VERT 64POS 2.54MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN HEADER VERT 64POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	302-S641

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Connector Type	Style	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post	Termination	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Contact Material	Contact Type	Insulation Color	Contact Finish - Post	Insulation Material	Contact Finish - Mating	Current Rating (Amps)
On Shore Technology Inc. 302-S641	2	0.358 in	9.1 mm	Through Hole	Header	Board to Cable/Wire	All	Shrouded - 4 Wall	0.122 "	3.1 mm	Solder	Keying Slot	2.54 mm	0.1 in	Flash	250 VDC	1.25 µin	0.032 µm	0.1 in	2.54 mm	UL94 V-0	Push-Pull	-40 °C	105 ░C	Square	64	Brass	Male Pin	Black	Gold	Polyester Glass Filled	Gold	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 64 position 0.100" (2.54mm)
