PEM2-S5-D24-S

Obsolete

CUI Inc.

DC DC CONVERTER +/-24V 2W

Deep-Dive with AI

Search across all available documentation for this part.

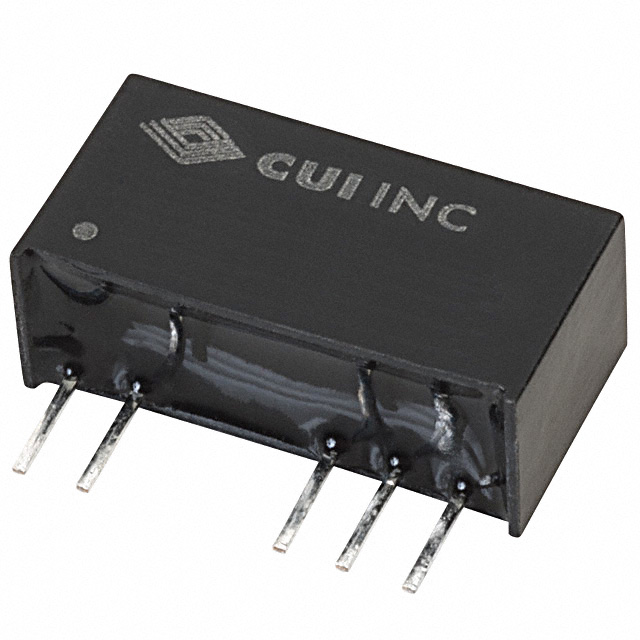

PEM2-S5-D24-S

Obsolete

CUI Inc.

DC DC CONVERTER +/-24V 2W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEM2-S5-D24-S

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	41.6 mA
Efficiency	84 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.6 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V
Voltage - Output 2	-24 V

PEM2-S5 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Standard Number	Power (Watts)	Efficiency	Approval Agency	Voltage - Input (Max) [Max]	Type	Features	Number of Outputs	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
CUI Inc. PEM2-S5-S15-D	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	84 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	1	15 V	ITE (Commercial)	-40 °C	105 ░C	14-DIP Module 6 Leads	133 mA
CUI Inc. PEM2-S5-S12-S	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	84 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	1	12 V	ITE (Commercial)	-40 °C	105 ░C	7-SIP Module 4 Leads	166.6 mA	7 mm	10 mm
CUI Inc. PEM2-S5-D5-D	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	80 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	2	5 V	ITE (Commercial)	-40 °C	105 ░C	14-DIP Module 6 Leads				-5 V
CUI Inc. PEM2-S5-D12-D	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	84 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	2	12 V	ITE (Commercial)	-40 °C	105 ░C	14-DIP Module 6 Leads				-12 V	83 mA	83 mA
CUI Inc. PEM2-S5-D5-S	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	84 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	2	5 V	ITE (Commercial)	-40 °C	105 ░C	7-SIP Module 5 Leads		7 mm	10 mm	-5 V
CUI Inc. PEM2-S5-D24-S	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	3000 V	4.5 V	55024 55032 Class A 60950-1	2 W	84 %	CB Scheme EN IEC UL	5.5 V	Isolated Module	SCP	2	24 V	ITE (Commercial)	-40 °C	105 ░C	7-SIP Module 5 Leads	41.6 mA	7 mm	10 mm	-24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.57
		5	$ 8.50
		10	$ 8.44

Description

General part information

PEM2-S5 Series

Isolated Module DC DC Converter 2 Output 24V -24V 41.6mA, 41.6mA 4.5V - 5.5V Input

Documents

Technical documentation and resources

No documents available
