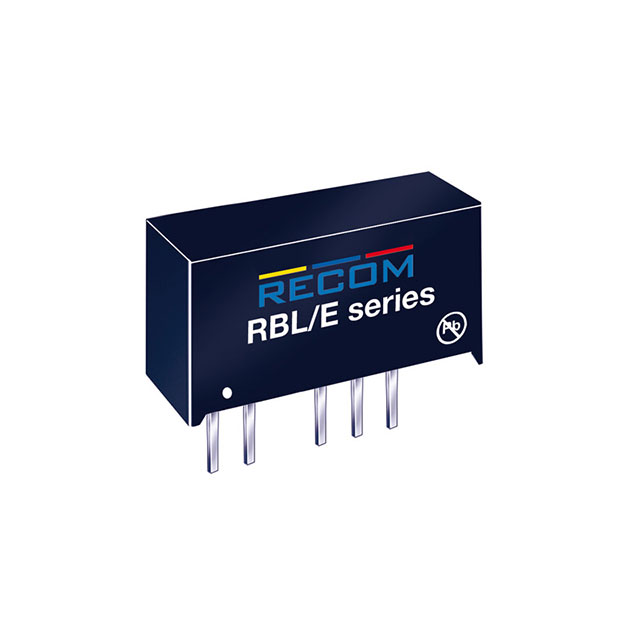

RBL-3.305S/E
ObsoleteRECOM Power
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.25W 3.3VIN 05VOUT
Deep-Dive with AI
Search across all available documentation for this part.
RBL-3.305S/E
ObsoleteRECOM Power
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.25W 3.3VIN 05VOUT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RBL-3.305S/E |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 mA |
| Efficiency | 80 % |
| Features | SCP |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 250 mW |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RBL/E Series
Isolated DC/DC Converters - Through Hole 0.25W 3.3VIN 05VOUT
Documents
Technical documentation and resources
No documents available
