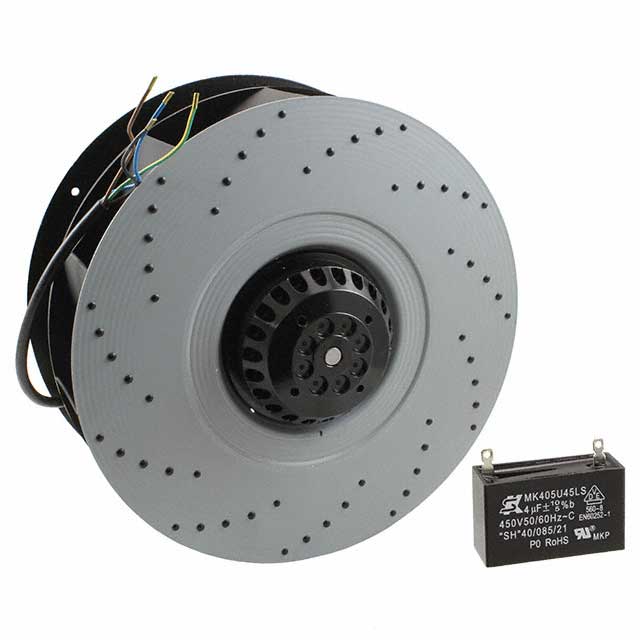

UF250APA23-H1C2F

Active

Mechatronics Bearing Group

IMPELLER 251X98MM 230VAC RING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackward Curved Impellers Datasheet +1

UF250APA23-H1C2F

Active

Mechatronics Bearing Group

IMPELLER 251X98MM 230VAC RING

Deep-Dive with AI

DocumentsBackward Curved Impellers Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF250APA23-H1C2F

Air Flow	681 CFM
Air Flow	19.07 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Aluminum
Noise	72 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	240 W
RPM	2700 RPM
Size / Dimension [diameter]	259 mm
Static Pressure	3.1 in H2O
Static Pressure	772.2 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	3.3 kg
Weight	7.2 lbs
Width [y]	131 mm

UF250 Series

Part	Fan Type	Voltage - Rated	RPM	Features	Width [y]	Weight	Weight	Noise	Material - Blade	Power (Watts)	Approval Agency	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Air Flow	Air Flow	Size / Dimension [diameter]	Bearing Type	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Termination	Width [x]
Mechatronics Bearing Group UF250APA12-H1C2A	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	98 mm	3.1 kg	6.8 lbs	76 dB(A)	Nylon Polyamide (PA)	240 W	CE cUL TUV UL	4 Wire Leads	2.1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	23.8 mł/min	850 CFM	251 mm	Ball	722.4 Pa	2.9 in H2O
Mechatronics Bearing Group UF250BMB12-H1C2B	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs	70 dB(A)	Metal	148 W	CE cUL TUV UL	2 Wire Leads	1.9 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	280 mm	280 mm	70 °C
Mechatronics Bearing Group UF250BMB23-H1C2A-B1	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE cUL TUV UL		0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	280 mm	280 mm	70 °C	3 Terminals
Mechatronics Bearing Group UF250APA12-H1C2F	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon Polyamide (PA)	240 W	CE cUL TUV UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Bearing Group UF250BMB12-H2C2A	Tubeaxial	115 VAC		Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs		Metal		CE cUL TUV UL	2 Terminals		70 °C	-20 C	-20 °C		Metal				Ball			280 mm	280 mm	70 °C
Mechatronics Bearing Group UF250APA23-H1C2F	Motorized Impellers	230 VAC	2700 RPM	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon Polyamide (PA)	240 W	CE cUL TUV UL	4 Wire Leads	1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Bearing Group UF250BMB12-H1C2A-B1	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE cUL TUV UL		1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	280 mm	280 mm	70 °C	3 Terminals
Mechatronics Bearing Group UF250APA12-H1C4A	Motorized Impellers	115 VAC		Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		3.1 kg	6.8 lbs	76 dB(A)	Nylon Polyamide (PA)		CE cUL TUV UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	21.56 m³/min	770 CFM	250 mm	Ball	548 Pa	2.2 in H2O					98.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 161.25

Description

General part information

UF250 Series

Fan Motorized Impellers 230VAC Round - 259mm Dia Ball 681.0 CFM (19.07m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Backward Curved Impellers

Datasheet

AC Axial Part Numbering Guide

Datasheet
