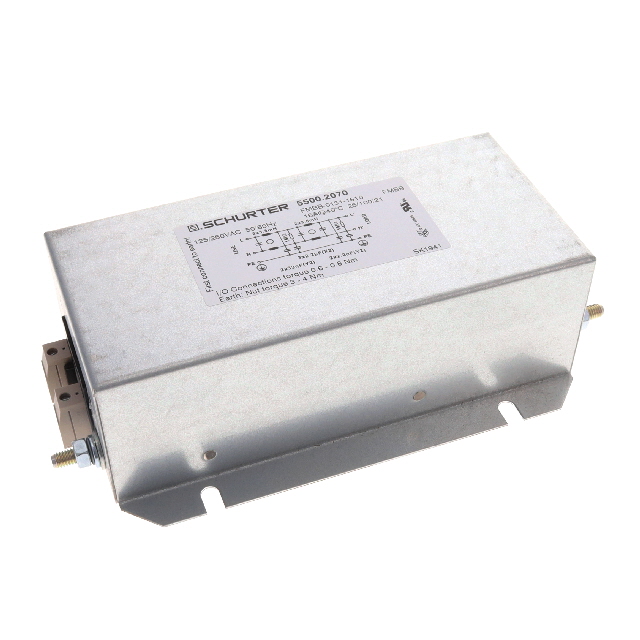

5500.2070

Active

SCHURTER Inc.

POWER LINE FILTERS 2-STAGE GP 16A FMBB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5500.2070

Active

SCHURTER Inc.

POWER LINE FILTERS 2-STAGE GP 16A FMBB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5500.2070

Applications	Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC
Configuration	Two Stage
Current	16 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	3.5 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	125 V, 250 V

FMBB Series

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Voltage - Rated AC	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Approval Agency	Current	Applications	Mounting Type	Inductance	Operating Temperature [custom]
SCHURTER Inc. FMBB-36MD-1640	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	16 A	Medical	Chassis Mount
SCHURTER Inc. FMBB-36ME-2040	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	20 A	Medical	Chassis Mount
SCHURTER Inc. FMBB-3309-0640	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	6 A	Medical	Chassis Mount
SCHURTER Inc. FMBB-34ME-2040	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	20 A	General Purpose	Chassis Mount
SCHURTER Inc. FMBB-3409-0340	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	3 A	General Purpose	Chassis Mount
SCHURTER Inc. FMBB-36MC-1040	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	10 A	Medical	Chassis Mount
SCHURTER Inc. FMBB-34MC-1040	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	10 A	General Purpose	Chassis Mount
SCHURTER Inc. FMBB-3609-0140	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	1 A	Medical	Chassis Mount
SCHURTER Inc. 5500.2070	60 Hz	50 Hz	Terminal Block	125 V 250 V	Two Stage			Single Phase	cURus ENEC VDE	16 A	Inverters Power Drive Systems	Chassis Mount	3.5 mH	-25 °C 100 °C
SCHURTER Inc. FMBB-34MC-1240	60 Hz	50 Hz	Quick Connect	125 V 250 V	Two Stage	100 °C	-40 °C	Single Phase	cURus ENEC VDE	12 A	General Purpose	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 272.20
Sager	N/A	1	$ 234.29
		6	$ 228.20
		28	$ 216.93
		57	$ 211.71

Description

General part information

FMBB Series

Single Phase EMC/EMI Line Filter 16 A 125V, 250V 50/60Hz Two Stage Terminal Block

Documents

Technical documentation and resources

Datasheet

Document
