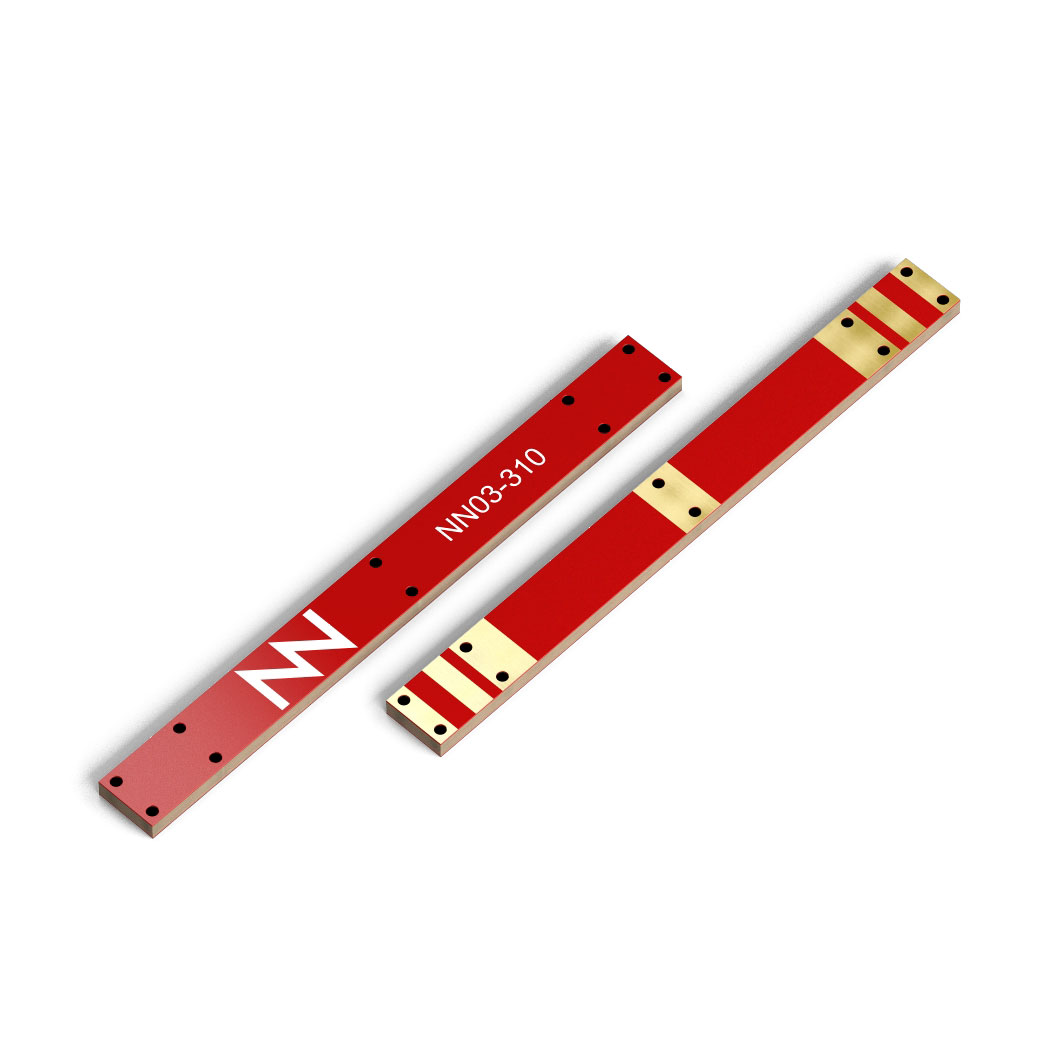

NN03-310

Active

Ignion

TRIO MXTEND MULTIBAND ANTENNA

Search across all available documentation for this part.

Active

Ignion

TRIO MXTEND MULTIBAND ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	NN03-310

Antenna Type	Chip
Applications	ISM, 2G/3G/4G/5G, UWB, Wi-Fi, LTE, Bluetooth, GNSS
Frequency (Center/Band)	800 MHz, 1.561 GHz, 3.8 GHz, 2.6 GHz, 2.3 GHz, 2 GHz, 1.606 GHz, 1.575 GHz, 2.45 GHz, 1.9 GHz, 2.1 GHz, 1.8 GHz, 3700 MHz, 900 MHz, 700 MHz, 3.5 GHz, 850 MHz, 2.5 GHz, 1.7 GHz
Frequency Group	Ultra Wide Band
Frequency Range [Max]	3.8 GHz
Frequency Range [Min]	698 MHz
Gain	2.4 dBi
Height (Max) [Max] [z]	1 mm
Height (Max) [Max] [z]	0.039 in
Mounting Type	Surface Mount
Number of Bands	12
RF Family/Standard	WiFi, Bluetooth, Cellular, Navigation
Termination	Solder
VSWR	3

Part	Frequency Range [Min]	Frequency Range [Max]	Applications	Termination	Gain	Mounting Type	Antenna Type	Frequency Group	Height (Max) [Max] [z]	Height (Max) [Max] [z]	VSWR	RF Family/Standard	Number of Bands	Frequency (Center/Band)
Ignion NN03-310	698 MHz	3.8 GHz	2G/3G/4G/5G Bluetooth GNSS ISM LTE UWB Wi-Fi	Solder	2.4 dBi	Surface Mount	Chip	Ultra Wide Band	1 mm	0.039 in	3	Bluetooth Cellular Navigation WiFi	12	1.561 GHz 1.575 GHz 1.606 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2 GHz 2.1 GHz 2.3 GHz 2.45 GHz 2.5 GHz 2.6 GHz 3.5 GHz 3.8 GHz 700 MHz 800 MHz 850 MHz 900 MHz 3700 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G/3G/4G/5G, Bluetooth, GNSS, ISM, LTE, UWB, Wi-Fi Chip Solder Surface Mount
