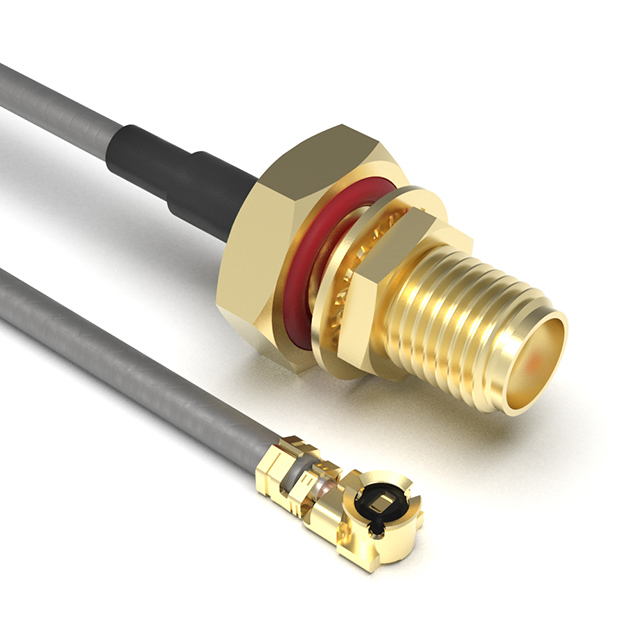

CABLE 375 RF-150-A-2
ActiveGCT
CBL ASY IPEX MHF1-SMA J-P 5.906"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 375 RF-150-A-2
ActiveGCT
CBL ASY IPEX MHF1-SMA J-P 5.906"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 375 RF-150-A-2 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Gray |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 150 mm |
| Length [x] | 5.906 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.39 | |
| 10 | $ 11.84 | |||
| 25 | $ 10.70 | |||
| 50 | $ 9.94 | |||
| 100 | $ 9.24 | |||
| 250 | $ 8.42 | |||
| 500 | $ 7.87 | |||
| 1000 | $ 7.37 | |||
Description
General part information
CABLE 375 Series
Cable Assembly Coaxial IPEX MHF1 to SMA 1.13mm OD Coaxial Cable 5.906" (150.00mm)
