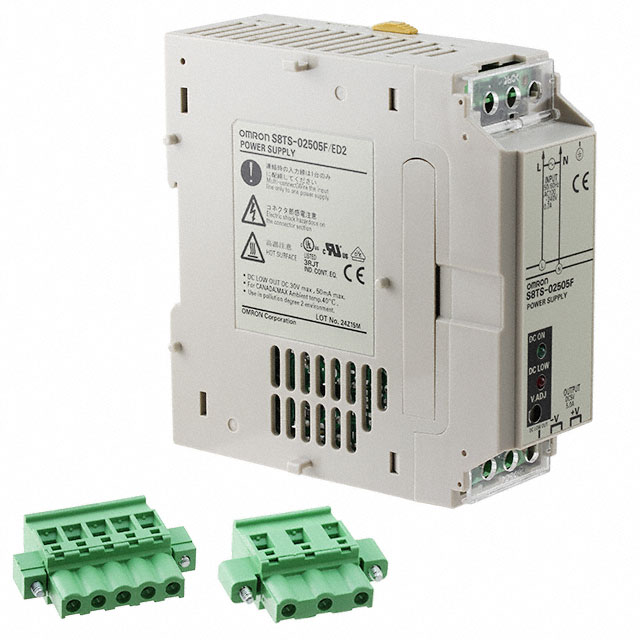

S8TS-02505F

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 5V 25W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 5V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	S8TS-02505F

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	5 A
Efficiency	73 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	25 W
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.72 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	4.72 "
Size / Dimension [z]	120 mm
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Power (Watts)	Approval Agency	Applications	Voltage - Output 1	Input Type	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation
Omron Electronics Inc-EMC Div S8TS-02505F	1	85 VAC	264 VAC	Adjustable Output Universal Input	25 W	CE cULus cURus VDE	ITE (Commercial)	5 V	AC	5 A	73 %	55 °C	-10 °C	4.72 "	43 mm	120 mm	120 mm	4.72 in	1.69 in	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 5V 25W
