SD-80BV

Active

CUI Devices

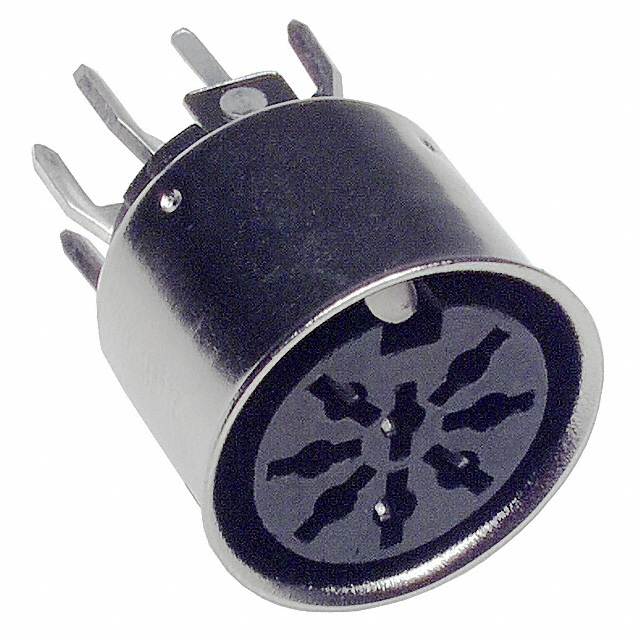

CONN RCPT FMALE DIN 8POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 8POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-80BV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Iron Sheet
Shell Size - Insert	DIN (270 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	24 VDC

Part	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Insert Material	Mounting Feature	Shell Size - Insert	Color	Orientation	Shielding	Number of Positions	Termination	Shell Finish	Connector Type	Voltage Rating	Material Flammability Rating	Contact Material	Primary Material	Fastening Type	Mounting Type
CUI Devices SD-80SN	Silver	70 °C	5 °C	Steel	Polybutylene Terephthalate (PBT)	Flange	DIN (270 Degree)	Silver	Keyed	Shielded	8	Solder Eyelet(s)	Nickel	Receptacle Female Sockets	12 V 100 VAC	UL94 V-0	Brass	Metal	Push-Pull
CUI Devices SD-80BV		60 °C	-20 C	Iron Sheet			DIN (270 Degree)	Silver	Keyed	Shielded	8	Solder	Nickel	Receptacle Female Sockets	24 VDC	UL94 V-0	Brass	Metal	Push-Pull	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
