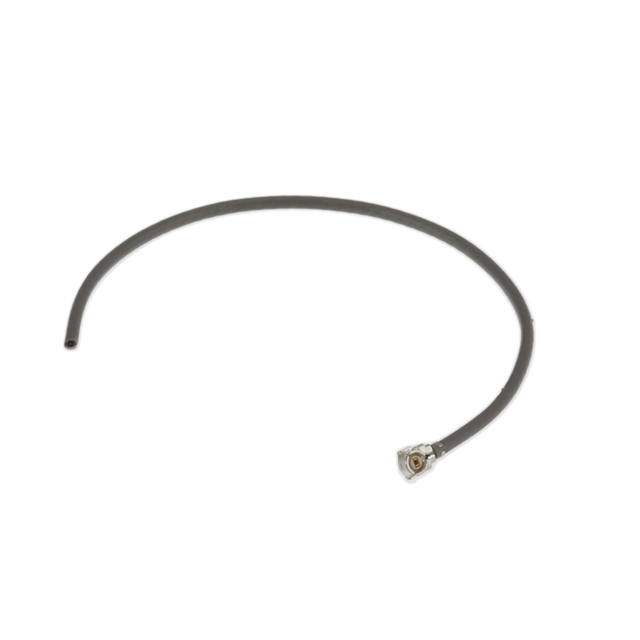

U.FL-LPHF6-066N1-A-100

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL PLUG 3.937"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL PLUG 3.937"

Technical Specifications

Parameters and characteristics for this part

Specification	U.FL-LPHF6-066N1-A-100

Body Finish	Silver
Body Material	Phosphor Bronze
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	U.FL (UMCC)
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Voltage Rating	100 V

Part	1st Connector Mounting Type	Frequency - Max [Max]	Cable Type	Cable Type [diameter]	Cable Impedance	2nd Connector	1st Connector	1st Contact Gender	Style	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Impedance	Contact Termination	Body Finish	Connector Type	Fastening Type	Body Material	Center Contact Plating	Number of Ports	Connector Style	Mounting Type	Dielectric Material	Voltage Rating
Hirose Electric USA, Inc. U.FL-LP-068HF(17)
Hirose Electric USA, Inc. U.FL-LP-040HF(01)	Free Hanging (In-Line)	6000 MHz	Coaxial Cable	0.81 mm	50 Ohms	Cable (Round)	U.FL (UMCC) Plug Right Angle	Female	U.FL (UMCC) to Cable	90 °C	-40 °C
Hirose Electric USA, Inc. U.FL-LP-062HF(07)
Hirose Electric USA, Inc. U.FL-LP(V)-040HF(02)	Free Hanging (In-Line)	6000 MHz	Coaxial Cable	0.81 mm	50 Ohms	Cable (Round)	U.FL (UMCC) Plug Right Angle	Female	U.FL (UMCC) to Cable	90 °C	-40 °C
Hirose Electric USA, Inc. U.FL-LP-066-SHELL
Hirose Electric USA, Inc. U.FL-LP(P)-088
Hirose Electric USA, Inc. U.FL-LP(P)-088(10)
Hirose Electric USA, Inc. U.FL-LPHF6-066N1-A-35		6000 MHz								90 °C	-40 °C	Phosphor Bronze	50 Ohms	Solder	Silver	Female Socket Plug	Snap-On	Phosphor Bronze	Gold	1	U.FL (UMCC)	Free Hanging (In-Line) Right Angle	Liquid Crystal Polymer (LCP)	100 V
Hirose Electric USA, Inc. U.FL-LPHF6-068N1T-A-73
Hirose Electric USA, Inc. U.FL-LPHF6-066N1-A-100		6000 MHz								90 °C	-40 °C	Phosphor Bronze	50 Ohms	Solder	Silver	Female Socket Plug	Snap-On	Phosphor Bronze	Gold	1	U.FL (UMCC)	Free Hanging (In-Line) Right Angle	Liquid Crystal Polymer (LCP)	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

U.FL (UMCC) Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
