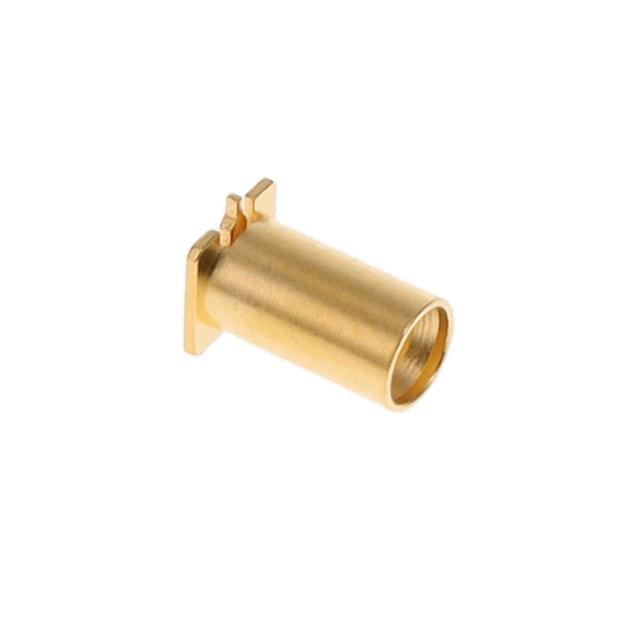

18S107-40ML5
ActiveRosenberger
STRAIGHT PLUG PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18S107-40ML5
ActiveRosenberger
STRAIGHT PLUG PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18S107-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Mini, SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 65 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 325 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.36 | |
| 10 | $ 14.90 | |||
| 25 | $ 13.48 | |||
| 50 | $ 12.53 | |||
| 100 | $ 11.66 | |||
| 250 | $ 10.63 | |||
| 500 | $ 9.94 | |||
| Digi-Reel® | 1 | $ 19.36 | ||
| 10 | $ 14.90 | |||
| 25 | $ 13.48 | |||
| 50 | $ 12.53 | |||
| 100 | $ 11.66 | |||
| 250 | $ 10.63 | |||
| 500 | $ 9.94 | |||
| Tape & Reel (TR) | 1000 | $ 9.35 | ||
Description
General part information
18S107 Series
SMP, Mini Connector Plug, Male Pin 50 Ohms Surface Mount Solder
