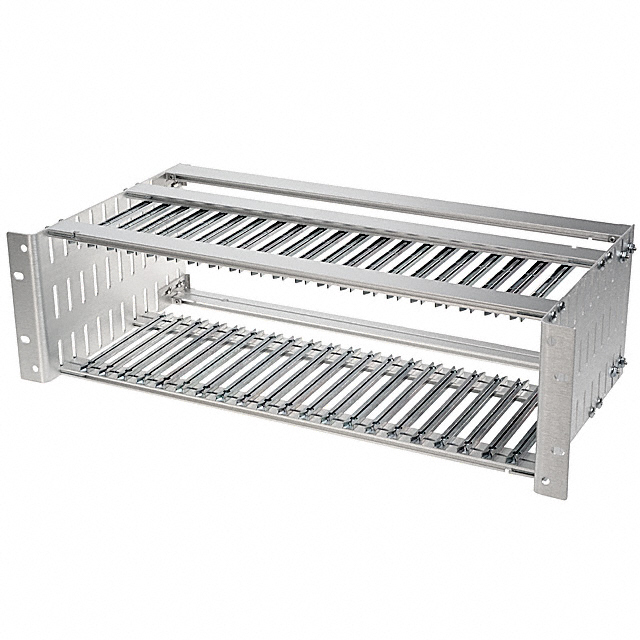

CCA13M/90

Active

Vector Electronics

CARD RACK ALUM 9X19

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ALUM 9X19

Technical Specifications

Parameters and characteristics for this part

Specification	CCA13M/90

Card Size Range	63.5 mm, 165.1 mm
Card Size Range [Max]	114.3 mm
Card Size Range [Max] [z]	4.5 in
Card Size Range [x]	6.5 in
Card Size Range [z]	2.5 in
Guide Method	Card Guide
Height [z]	133.35 mm
Height [z]	5.25 in
Material	Aluminum
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Subracks with Card Guides

Part	Type	Guide Method	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Height [z]	Height [z]	Card Size Range [z]	Card Size Range	Card Size Range [Max]	Card Size Range [x]	Card Size Range [Max] [z]	Size / Dimension [x]	Size / Dimension [y]
Vector Electronics CCA13M-H/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm	228.6 mm	10.25 "	260.35 mm	Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in
Vector Electronics CCA13M-HT/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm	228.6 mm	8.25 in	209.55 mm	Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in
Vector Electronics CCA13M/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm		482.6 mm		Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	9 in	19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Aluminum Assembled Subracks with Card Guides 3U = 5.250" (133.35mm)
