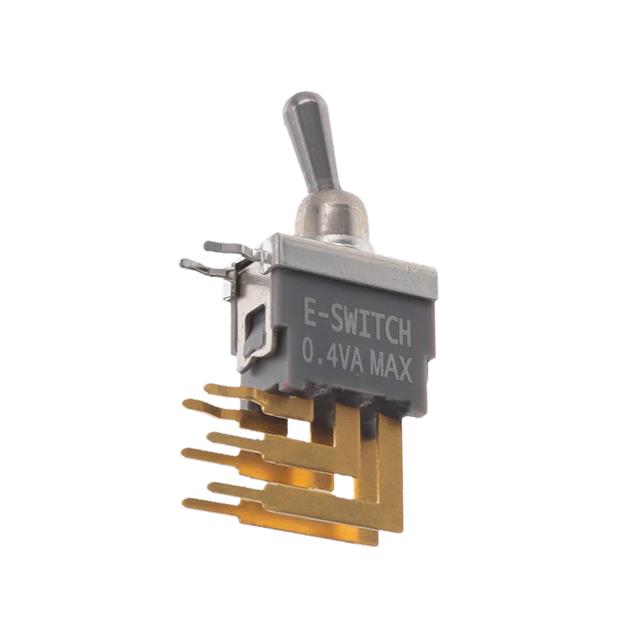

200RDP1T1B1M7R

Active

E-Switch

SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; LEADS: FOR PCB,ANGLED; 200R

Search across all available documentation for this part.

Active

E-Switch

SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; LEADS: FOR PCB,ANGLED; 200R

Technical Specifications

Parameters and characteristics for this part

Specification	200RDP1T1B1M7R

Actuator Length [x]	6 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Bushing Thread	Illumination	Termination Style	Actuator Type	Ingress Protection	Circuit	Actuator Length [x]
E-Switch 200RDP1T1B1M7R	Right Angle Through Hole Vertical	-30 ░C	85 °C	0.4 VA	On-On	48 V	48 V	Unthreaded	Non-Illuminated	PC Pin	Standard Round	IP67 - Dust Tight Waterproof	DPDT	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical

Technical documentation and resources

No documents available
