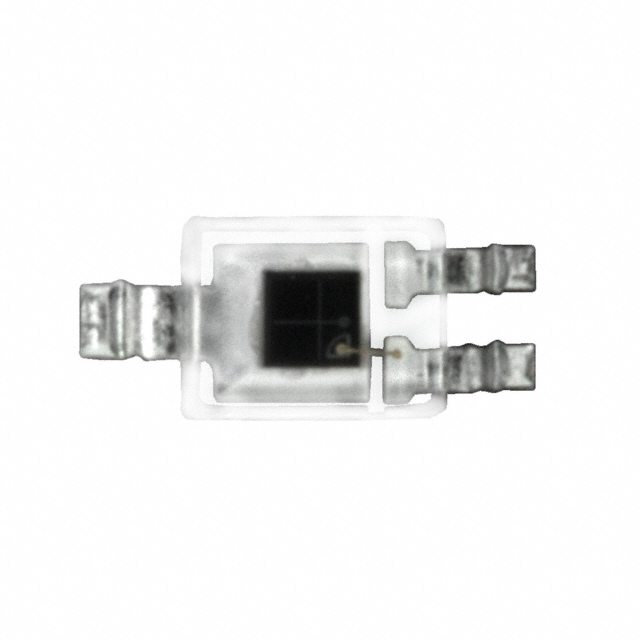

SFH 3400-2/3-Z

Obsolete

ams-OSRAM USA INC.

SENSOR PHOTO 850NM TOP VIEW 3SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

SENSOR PHOTO 850NM TOP VIEW 3SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 3400-2/3-Z

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, Gull Wing
Power - Max [Max]	120 mW
Viewing Angle	120 °
Voltage - Collector Emitter Breakdown (Max)	20 V
Wavelength	850 nm

Part	Orientation	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Mounting Type	Power - Max [Max]	Viewing Angle	Wavelength	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature [Max]	Operating Temperature [Min]
ams-OSRAM USA INC. SFH 3400-2/3-Z	Top View	100 nA	50 mA	3-SMD Gull Wing	Surface Mount	120 mW	120 °	850 nm	20 V	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors 850nm Top View 3-SMD, Gull Wing
