Technical Specifications
Parameters and characteristics for this part
| Specification | TCA0372BDWR2G |
|---|---|
| Amplifier Type | Power |
| Current - Input Bias | 100 nA |
| Current - Output / Channel | 1 A |
| Current - Supply | 8 mA |
| Gain Bandwidth Product | 1.4 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

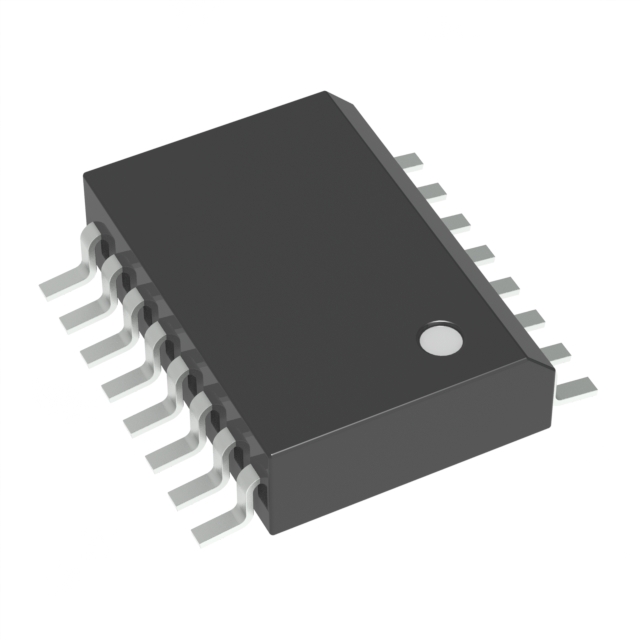

| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Slew Rate | 1.4 V/µs |
| Supplier Device Package | 16-SOIC |
| Voltage - Input Offset | 1 mV |
| Voltage - Supply Span (Max) [Max] | 40 V |
| Voltage - Supply Span (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.11 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.11 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 2.11 | ||
| 10 | $ 1.31 | |||
| 25 | $ 1.11 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.72 | |||
| Tape & Reel (TR) | 1000 | $ 0.67 | ||
| 2000 | $ 0.62 | |||
| 3000 | $ 0.60 | |||
| 5000 | $ 0.58 | |||
| 7000 | $ 0.56 | |||
| 10000 | $ 0.56 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.77 | |
| 3000 | $ 0.74 | |||
| 6000 | $ 0.67 | |||
| 12000 | $ 0.61 | |||
| 18000 | $ 0.58 | |||
| 30000 | $ 0.57 | |||
| ON Semiconductor | N/A | 1 | $ 0.60 | |
Description
General part information
TCA0372 Series
The TCA0372 is a monolithic circuit intended for use as a power op-amp in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
