333-41513

Active

HELLERMANNTYTON

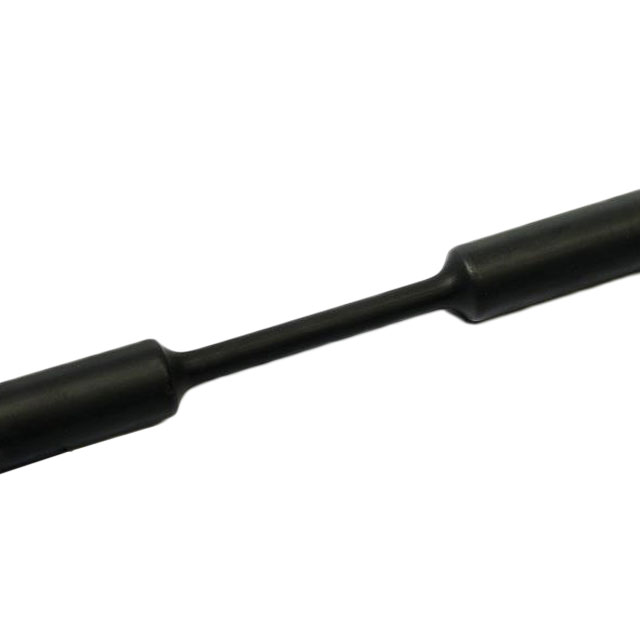

HEAT SHRINK TUBING, TFN31, PACK OF 5 4' STICKS, 3:1, 0.75 ", 19.1 MM, BLACK, 4 FT, 1.22 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

333-41513

Active

HELLERMANNTYTON

HEAT SHRINK TUBING, TFN31, PACK OF 5 4' STICKS, 3:1, 0.75 ", 19.1 MM, BLACK, 4 FT, 1.22 M

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-41513

Color	Black
Features	Heat Resistant, Solvent Resistant, Abrasion Resistant, Fuel Resistant, Oil Resistant
Inner Diameter - Recovered	5.99 mm
Inner Diameter - Recovered	0.236 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shrink Temperature	100 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

333-41 Series

Part	Type	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Length [x]	Length [x]	Material	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Length	Length	Inner Diameter - Recovered	Inner Diameter - Recovered
HELLERMANNTYTON 333-41514	Tubing Flexible	1	3	0.047 "	1.19 mm	1 in	25.4 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.315 in	8 mm	100 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated
HELLERMANNTYTON 333-41509	Tubing Flexible	1	3			0.189 in	4.8 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.06 in	1.52 mm	100 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated	0.025 "	0.64 mm
HELLERMANNTYTON 333-41502	Tubing Flexible	1	3	0.029 in	0.74 mm	0.374 in	9.5 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.118 in	2.99 mm	100 °C	152.4 m	500 '	Polyolefin (PO) Irradiated
HELLERMANNTYTON 333-41501	Tubing Flexible	1	3	0.026 "	0.66 mm	0.252 "	6.4 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C			100 °C			Polyolefin (PO) Irradiated			1000 ft	304.8 m	0.079 in	2.01 mm
HELLERMANNTYTON 333-41513	Tubing Flexible	1	3	0.035 in	0.89 mm			Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C			100 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated					0.236 in	5.99 mm
HELLERMANNTYTON 333-41506	Tubing Flexible	1	3	0.049 "	1.24 mm			Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C			100 °C	30.5 m	100 ft	Polyolefin (PO) Irradiated					0.512 in	13 mm
HELLERMANNTYTON 333-41507	Tubing Flexible	1	3	0.018 in	0.46 mm	0.063 in	1.6 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.02 in	0.51 mm	100 °C	1.22 m	4 ft	Polyolefin (PO) Irradiated
HELLERMANNTYTON 333-41505	Tubing Flexible	1	3	0.047 "	1.19 mm	1 in	25.4 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.315 in	8 mm	100 °C	61 m	200 ft	Polyolefin (PO) Irradiated
HELLERMANNTYTON 333-41500	Tubing Flexible	1	3	0.022 "	0.56 mm	0.125 "	3.18 mm	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	135 °C	-55 °C	0.039 in	0.99 mm	100 °C			Polyolefin (PO) Irradiated			1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 6.54
Newark	Pack of 5	1	$ 30.98
		2	$ 27.88
		5	$ 26.33
		10	$ 25.56
		20	$ 24.78
		50	$ 24.01
		100	$ 23.23
		200	$ 22.46
