HDF-S26-203L011
ActiveMH Connectors

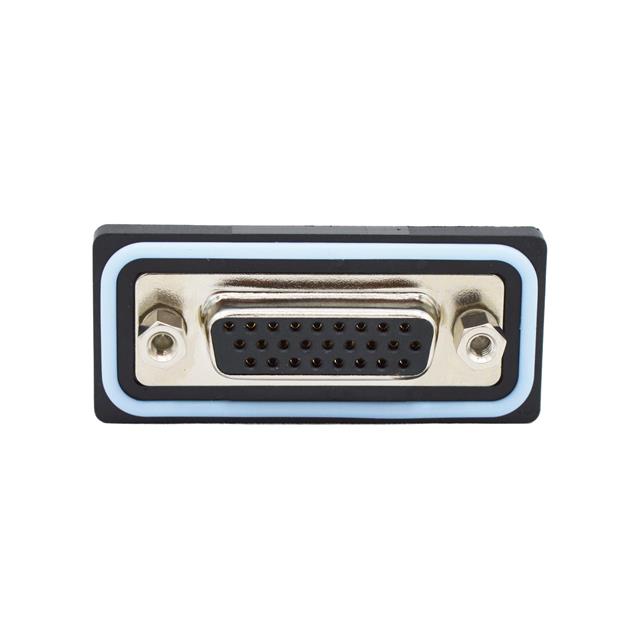

CONN D-SUB HD RCPT 26POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDF-S26-203L011
ActiveMH Connectors
CONN D-SUB HD RCPT 26POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDF-S26-203L011 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
