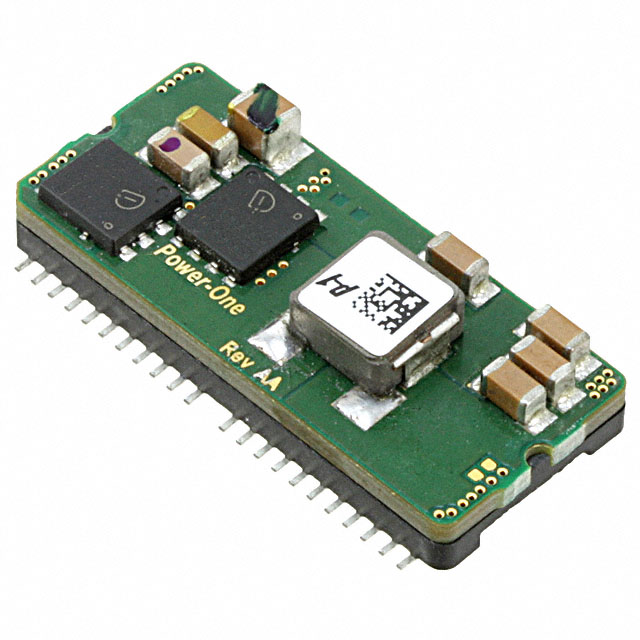

DP7010G-R100
ActiveEOS Power India Private Ltd
MODULE DC-DC 1-OUT 0.7V TO 5.5V 7A 25-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DP7010G-R100
ActiveEOS Power India Private Ltd
MODULE DC-DC 1-OUT 0.7V TO 5.5V 7A 25-PIN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DP7010G-R100 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [y] | 0.55 in |
| Size / Dimension [z] | 7 mm |
| Size / Dimension [z] | 0.28 " |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 41.83 | |
| 5 | $ 39.42 | |||
| 10 | $ 38.43 | |||
| 25 | $ 37.16 | |||
| 50 | $ 36.22 | |||
| Digi-Reel® | 1 | $ 41.83 | ||
| 5 | $ 39.42 | |||
| 10 | $ 38.43 | |||
| 25 | $ 37.16 | |||
| 50 | $ 36.22 | |||
| Tape & Reel (TR) | 100 | $ 30.57 | ||
| 200 | $ 30.07 | |||
| 300 | $ 29.78 | |||
Description
General part information
DP7010 Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 10A 8V - 14V Input
Documents
Technical documentation and resources
No documents available
