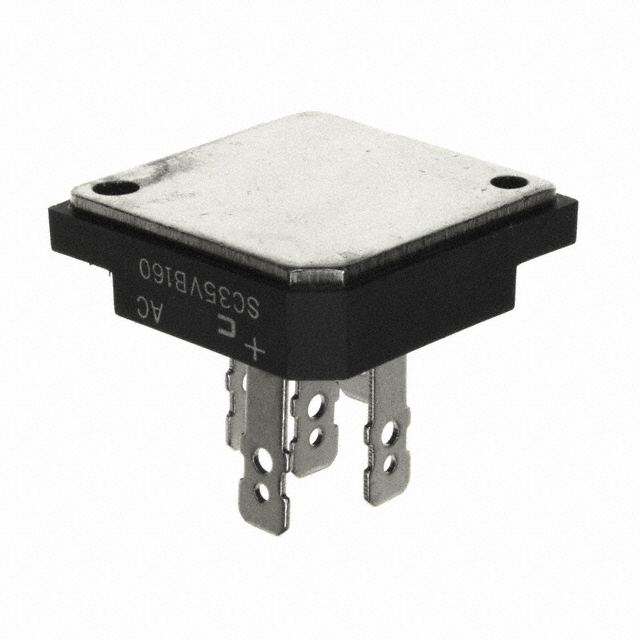

SC35VB160-G

Obsolete

Comchip Technology

BRIDGE RECT 3P 1.6KV 35A SCVB

Search across all available documentation for this part.

Obsolete

Comchip Technology

BRIDGE RECT 3P 1.6KV 35A SCVB

Technical Specifications

Parameters and characteristics for this part

Specification	SC35VB160-G

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	5-Square, SCVB
Supplier Device Package	SCVB
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Supplier Device Package	Diode Type	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If
Comchip Technology SC35VB160-G	35 A	1.6 kV	-55 °C	150 °C	5-Square SCVB	Chassis Mount	SCVB	Three Phase	100 µA	Standard	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount SCVB
