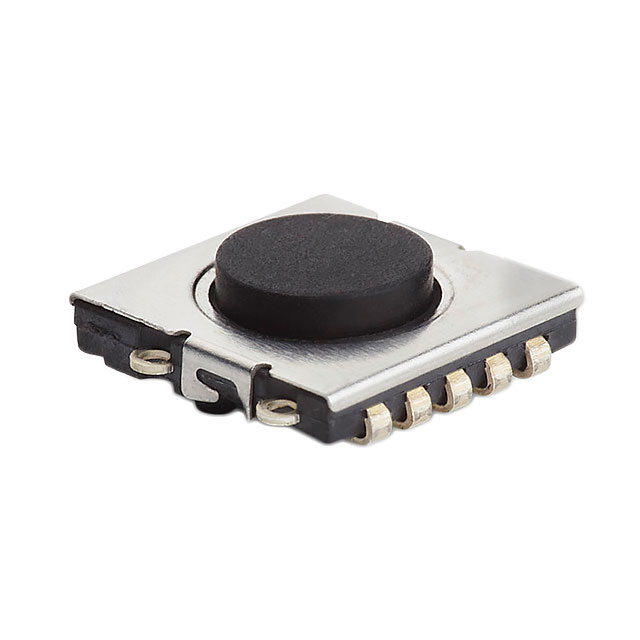

6CJ1NOPR

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	6CJ1NOPR

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	3000000 Cycles
Mounting Type	Surface Mount
Operating Force	370 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	8 mm
Outline [y]	8 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	J Lead

Part	Mounting Type	Contact Rating @ Voltage	Mechanical Life	Operating Force	Illumination	Switch Function	Outline [y]	Outline [x]	Actuator Material	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Termination Style	Ingress Protection	Actuator Height off PCB, Vertical [z]	Circuit	Switch Travel [custom]
MEC Switches 6CJ1NOPR	Surface Mount	0.05 A 24 VDC	3000000 Cycles	370 gf	Non-Illuminated	Off-Mom	8 mm	8 mm	Silicone Rubber	Plunger for Cap	85 °C	-40 °C	Top Actuated	J Lead	IP67 - Dust Tight Waterproof	2.5 mm	SPST-NO	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
