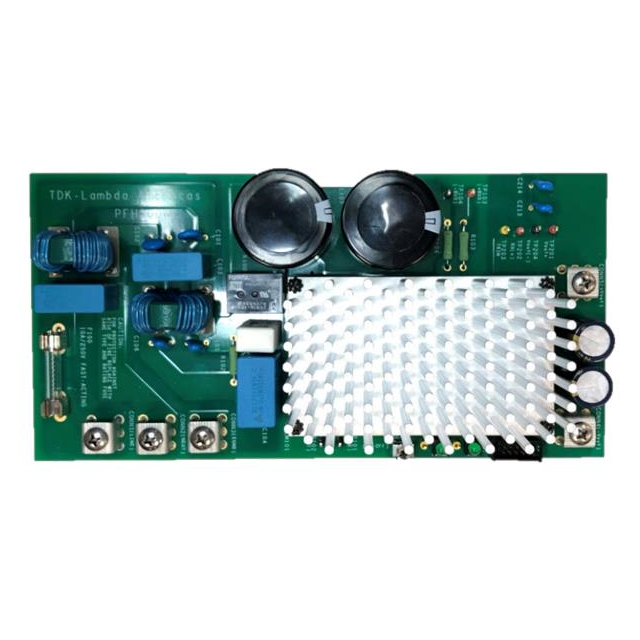

PFH05W28-100-EVK-S1
ActiveTDK-LAMBDA
EVALUATION BOARD, AC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
PFH05W28-100-EVK-S1
ActiveTDK-LAMBDA
EVALUATION BOARD, AC/DC CONVERTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFH05W28-100-EVK-S1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 18 A |
| Main Purpose | AC/DC, Non-Isolated |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 500 W |
| Supplied Contents | Board(s) |
| Utilized IC / Part | PFH500F-28-100-R |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PFH05W28 Series
PFH500F-28-100-R - AC/DC, Non-Isolated 1, Non-Isolated Outputs Evaluation Board
