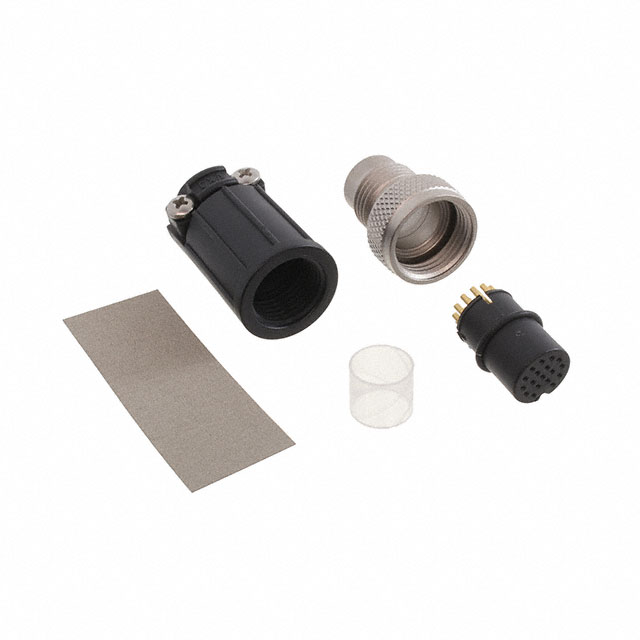

SF6982-18SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 18P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 18P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SF6982-18SG-530

Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.33 in
Cable Opening [custom]	8.38 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shielding	Shielded

Part	Contact Material	Shell Material	Primary Material	Connector Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Number of Positions	Backshell Material, Plating	Color	Insert Material	Orientation	Shielding	Features	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Applications
Conxall/Switchcraft SF6982-18PG-530	Copper Alloy	Copper Alloy	Metal	Male Pins Plug	Gold	-40 °C	120 °C	IP66/IP68	Free Hanging (In-Line)	18	Thermoplastic	Black Silver	Thermoplastic	Keyed	Shielded	Backshell Cable Clamp Coupling Nut	0.33 in	8.38 mm	Nickel
Conxall/Switchcraft SF6982-15PG-530	Copper Alloy	Copper Alloy	Metal	Male Pins Plug	Gold	-40 °C	120 °C	IP66/IP68	Free Hanging (In-Line)	15	Thermoplastic	Black Silver	Thermoplastic	Keyed	Shielded	Backshell Cable Clamp Coupling Nut	0.33 in	8.38 mm	Nickel	Lighting Medical
Conxall/Switchcraft SF6982-18SG-530	Copper Alloy	Copper Alloy	Metal	Female Sockets Plug	Gold	-40 °C	120 °C	IP66/IP68	Free Hanging (In-Line)	18	Thermoplastic	Black Silver	Thermoplastic	Keyed	Shielded	Backshell Cable Clamp Coupling Nut	0.33 in	8.38 mm	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.78

General part information

18 Position Circular Connector Plug, Female Sockets Solder Cup
