ES1000/12DSFB

Active

On Shore Technology Inc.

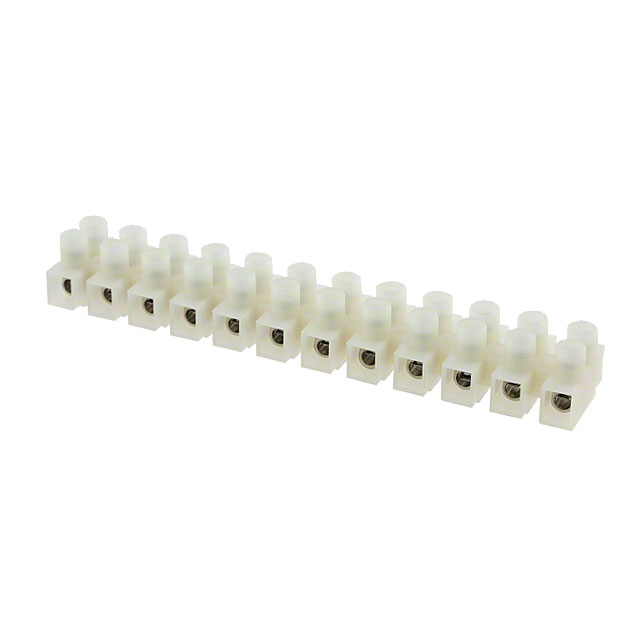

CONN TERM STRIP 12CIRC 0.394"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ES1000/12DSFB

Active

On Shore Technology Inc.

CONN TERM STRIP 12CIRC 0.394"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ES1000/12DSFB

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Natural
Current Rating (Amps)	20 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel, Chassis
Number of Circuits	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-33 °C
Pitch [x]	0.394 in
Pitch [x]	10 mm
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	12 AWG

ES1000 Series

Part	Terminal Screw Material	Material - Insulation	Mounting Type	Bottom Termination	Barrier Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Top Termination	Color	Terminal Block Type	Terminal Screw Finish	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Rows	Number of Circuits	Number of Circuits [custom]
On Shore Technology Inc. ES1000/02DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	4	20 A	0.394 in	10 mm	2	2
On Shore Technology Inc. ES1000/08DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	16	20 A	0.394 in	10 mm	2		8
On Shore Technology Inc. ES1000/05DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	10	20 A	0.394 in	10 mm	2	5
On Shore Technology Inc. ES1000/12DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG		20 A	0.394 in	10 mm	2	12
On Shore Technology Inc. ES1000/04DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	8	20 A	0.394 in	10 mm	2	4
On Shore Technology Inc. ES1000/10DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	20	20 A	0.394 in	10 mm	2	10
On Shore Technology Inc. ES1000/03DSFB	Steel	Polyamide (PA66) Nylon 6/6	Chassis Panel	Closed	Enclosed	105 ░C	-33 °C	300 VDC	Screws	Natural	Eurostyle Terminal Strip	Zinc	12 AWG	20 AWG	6	20 A	0.394 in	10 mm	2	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.07
		10	$ 3.10
		25	$ 2.90
		50	$ 2.58
		100	$ 2.53
		250	$ 2.33
		500	$ 2.10
		1000	$ 1.87
		5000	$ 1.75

Description

General part information

ES1000 Series

12 Circuit 0.394" (10.00mm) Eurostyle Terminal Strip Connector Screws
