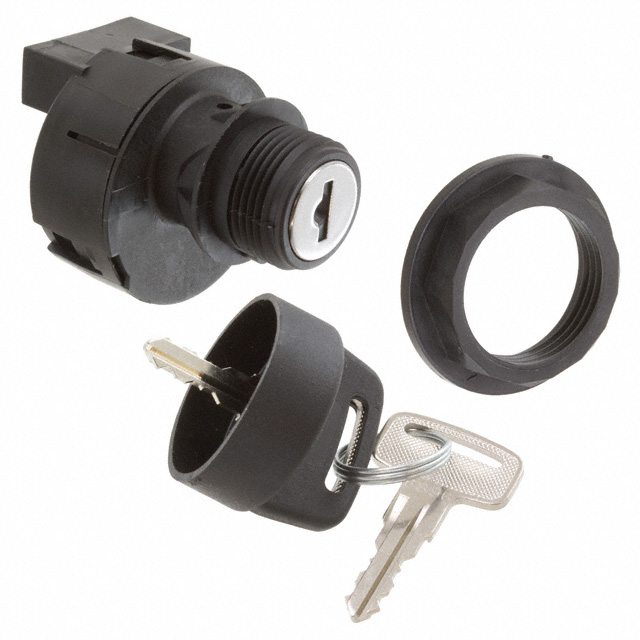

84825-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH KEYLOCK 2POS SPST 20A 12V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH KEYLOCK 2POS SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	84825-01

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	SPST
Contact Finish	Tin
Contact Material	Brass
Contact Timing	Not Specified
Current Rating (Amps)	20 A
Depth Behind Flange	43.43 mm
Electrical Life	25000 Steps
Key Removable Positions	Center
Mechanical Life	25000 Steps
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.35 mm
Switch Function	Off-On
Termination Style	Connector
Voltage Rating - DC	12 V

Part	Contact Timing	Angle of Throw	Voltage Rating - DC	Contact Material	Actuator Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Key Removable Positions	Contact Finish	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Number of Positions	Depth Behind Flange	Termination Style	Circuit	Switch Function
Honeywell Sensing and Productivity Solutions 84825-01	Not Specified	45 °	12 V	Brass	Flat Key	22.35 mm	20 A	Center	Tin	25000 Steps	85 °C	-40 °C	25000 Steps	2	43.43 mm	Connector	SPST	Off-On
Honeywell Sensing and Productivity Solutions 84825-04

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPST 20A (DC) AC 12 VDC Panel Mount
