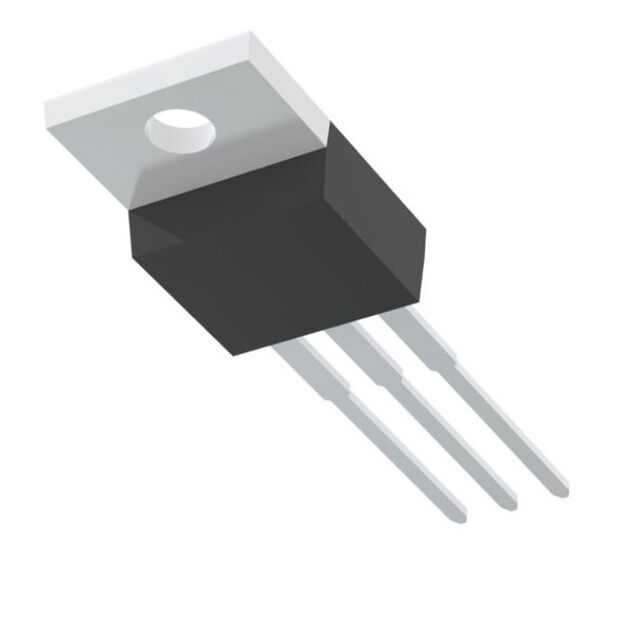

MBR15150CTH

Active

Taiwan Semiconductor Corporation

DIODE ARR SCHOT 150V 15A TO220AB

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE ARR SCHOT 150V 15A TO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	MBR15150CTH

Current - Average Rectified (Io) (per Diode)	15 A
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-3
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	1.05 V

Part	Qualification	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Mounting Type	Grade	Supplier Device Package	Technology	Current - Average Rectified (Io) (per Diode)	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case
Taiwan Semiconductor Corporation MBR15150CTH	AEC-Q101	1.05 V	1 Pair Common Cathode	Through Hole	Automotive	TO-220AB	Schottky	15 A	200 mA 500 ns	150 °C	-55 °C	TO-220-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 150 V 15A Through Hole TO-220-3

Technical documentation and resources

No documents available
