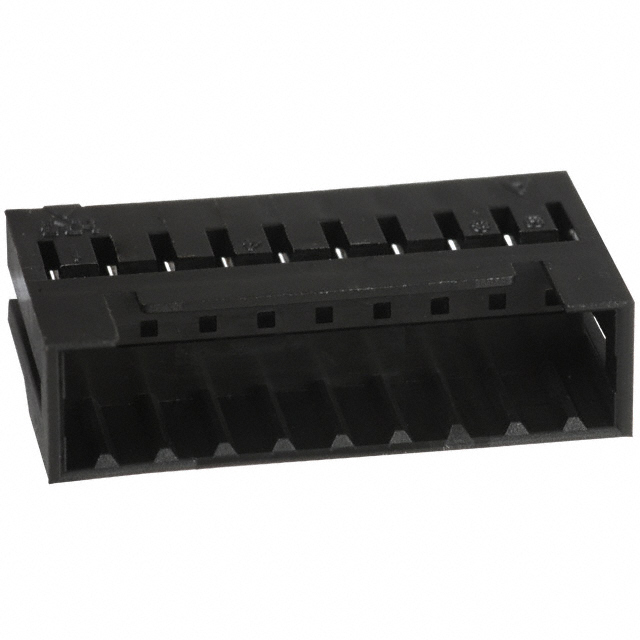

DF3-9EP-2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 9POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3-9EP-2C Spec Datasheet

DF3-9EP-2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 9POS 2.00MM

Deep-Dive with AI

DocumentsDF3-9EP-2C Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-9EP-2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

DF3-9 Series

Part	Convert From (Adapter End)	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Wire Gauge	Features	Contact Type	Color	Cable Termination	Contact Finish	Connector Type	Wire Type	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Style	Shrouding	Contact Shape	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Fastening Type	Note	Contact Termination	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Voltage Rating	Mated Stacking Heights [z]	Overall Contact Length [x]	Overall Contact Length [x]
Hirose Electric USA, Inc. DF3-9EP-2A	Plug Male Pins	Panel Mount Snap-In	1	0.079 in	2 mm	9
Hirose Electric USA, Inc. DF3-9S-2R26(05)		Free Hanging (In-Line)	1	0.079 in	2 mm	9	26 AWG	Closed End	Female Socket	Black	IDC	Tin	Receptacle	Discrete
Hirose Electric USA, Inc. DF3-9P-2H(50)		Surface Mount Right Angle	1			9		Board Guide	Male Pin				Header		UL94 V-0	All	Nylon Polyamide (PA)	5.6 mm	0.22 in	105 ░C	-55 °C	Solder	Beige	0.079 in	2 mm	Board to Board Cable	Shrouded - 4 Wall	Circular	Gold	Brass	3 A	Push-Pull
Hirose Electric USA, Inc. DF3-9S-2R28(05)		Free Hanging (In-Line)	1	0.079 in	2 mm	9	28 AWG	Closed End	Female Socket	Black	IDC	Tin	Receptacle	Discrete
Hirose Electric USA, Inc. DF3-9EP-2C		Free Hanging (In-Line)	1	0.079 in	2 mm	9			Male Pin	Black			Plug				Nylon Polyamide (PA)			105 ░C	-55 °C												Contacts Not Included	Crimp
Hirose Electric USA, Inc. DF3-9P-2DS(01)		Through Hole Right Angle	1			9			Male Pin				Header		UL94 V-0	All	Nylon Polyamide (PA)	5 mm	0.197 in	105 ░C	-55 °C	Press-Fit Solder	Black	0.079 in	2 mm	Board to Board Cable	Shrouded - 4 Wall	Square	Gold	Brass	3 A	Push-Pull			0.122 in	3.1 mm	0.114 in	2.9 mm	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF3-9S-2DSA(55)		Through Hole	1			9			Female Socket				Receptacle		UL94 V-0	All	Nylon Polyamide (PA)	5.9 mm	0.232 in	85 °C	-30 ░C	Solder	Black	0.079 in	2 mm	Board to Board Cable		Square	Gold	Phosphor Bronze	3 A	Friction Lock					0.118 in	3 mm	0.203 Ám	8 Áin	1 çm	39.4 çin	Tin	30 VAC	6.6 mm 7.5 mm
Hirose Electric USA, Inc. DF3-9P-2DSA(01)		Through Hole	1			9			Male Pin				Header		UL94 V-0	All	Nylon Polyamide (PA)	5 mm	0.197 in	105 ░C	-55 °C	Press-Fit Solder	Black	0.079 in	2 mm	Board to Board Cable	Shrouded - 4 Wall	Square	Gold	Brass	3 A	Push-Pull			0.122 in	3.1 mm	0.114 in	2.9 mm	0.203 Ám	8 Áin						0.299 in	7.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.37
		25	$ 0.33
		50	$ 0.30
		100	$ 0.28
		250	$ 0.25
		500	$ 0.23
		1000	$ 0.22
		2500	$ 0.20

Description

General part information

DF3-9 Series

9 Rectangular Connectors - Housings Plug Black 0.079" (2.00mm)

Documents

Technical documentation and resources

DF3-9EP-2C Spec

Datasheet
