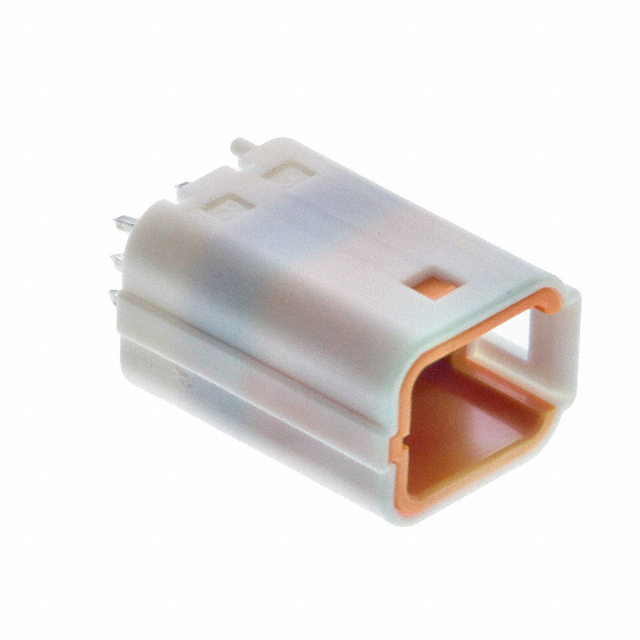

B06B-JWPF-SK-R

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B06B-JWPF-SK-R

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Dust Tight, Waterproof
Insulation Color	Natural
Insulation Height	0.654 in
Insulation Height	16.61 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	21 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.157 in
Row Spacing - Mating	4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Material Flammability Rating	Number of Positions Loaded	Contact Type	Insulation Color	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Features	Contact Finish - Post	Style	Mated Stacking Heights	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Current Rating (Amps)	Number of Positions	Connector Type	Contact Material	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Ingress Protection	Fastening Type
JST Sales America Inc. B06B-JWPF-SK-R	UL94 V-0	All	Male Pin	Natural	100 V	0.157 in	4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Kinked Pin Solder	0.13 in	3.3 mm	0.654 in	16.61 mm	Board Guide	Tin	Board to Cable/Wire	21 mm	Square	85 °C	-55 °C	2	Through Hole	3 A	6	Header	Copper Alloy	Shrouded - 4 Wall	0.079 in	2 mm	Dust Tight Waterproof	Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.079" (2.00mm)
