174-E15-211R141

Obsolete

MH Connectors

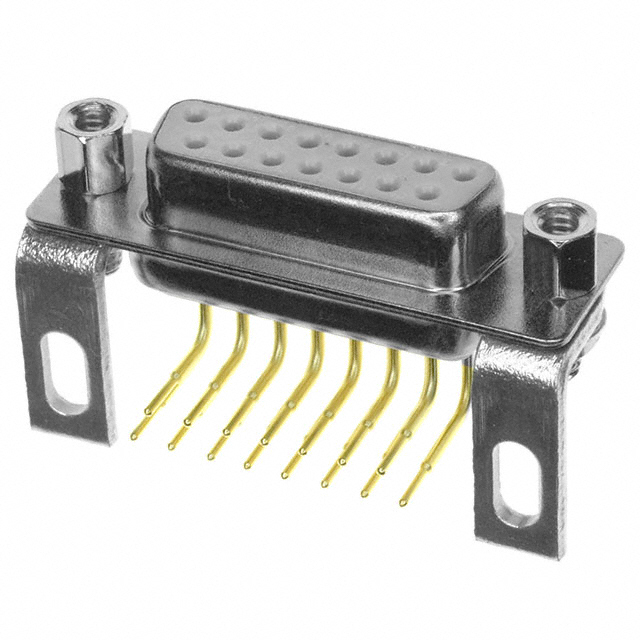

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

174-E15-211R141

Obsolete

MH Connectors

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	174-E15-211R141

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	2
Termination	Solder

174-E15 Series

Part	Features	Number of Rows	Contact Type	Contact Finish	Dielectric Material	Shell Size, Connector Layout	Flange Feature	Connector Type	Connector Style	Mounting Type	Current Rating (Amps)	Number of Positions	Backset Spacing	Backset Spacing	Material Flammability Rating	Termination	Color	Contact Finish Thickness	Contact Material	Shell Material, Finish
MH Connectors 174-E15-212-141	Mounting Brackets	2	Signal	Gold	Polybutylene Terephthalate (PBT)	2	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash
MH Connectors 174-E15-213R001		2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash	Brass	Nickel Plated Steel
MH Connectors 174-E15-212-001		2	Signal	Gold	Polybutylene Terephthalate (PBT)	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash
MH Connectors 174-E15-111R241	Mounting Brackets	2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Mating Side Standard Screws (4-40)	Male Pins Plug	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash	Brass	Steel Yellow Chromate Plated
MH Connectors 174-E15-111R001		2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Housing/Shell (Unthreaded)	Male Pins Plug	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash		Steel Yellow Chromate Plated
MH Connectors 174-E15-113R461	Board Lock Grounding Indents Mounting Brackets	2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Housing/Shell (4-40)	Male Pins Plug	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash	Brass	Nickel Plated Steel
MH Connectors 174-E15-211R001		2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash	Brass	Steel Yellow Chromate Plated
MH Connectors 174-E15-211R141	Mounting Brackets	2	Signal	Gold	Polyamide (PA6T) Nylon 6T	2	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Panel Mount Right Angle Through Hole	5 A	15	9.4 mm	0.37 in	UL94 V-0	Solder	White	Flash	Brass	Steel Yellow Chromate Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.57
		10	$ 4.09

Description

General part information

174-E15 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet
